3R8-98E9
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 91.73"； Outer Diameter: 108.4"； Width (Thickness): 5.79";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R8-98E9 |
| Curve No. | 8-98 |
| Radial(lbs) | 472000 |
| Compresive Thrust(lbs) | 3473000 |
| Moment(ft-lbs) | 6255000 |
| Weight(lbs) | 2914 |
| Thrust Capacity(lbs) | |

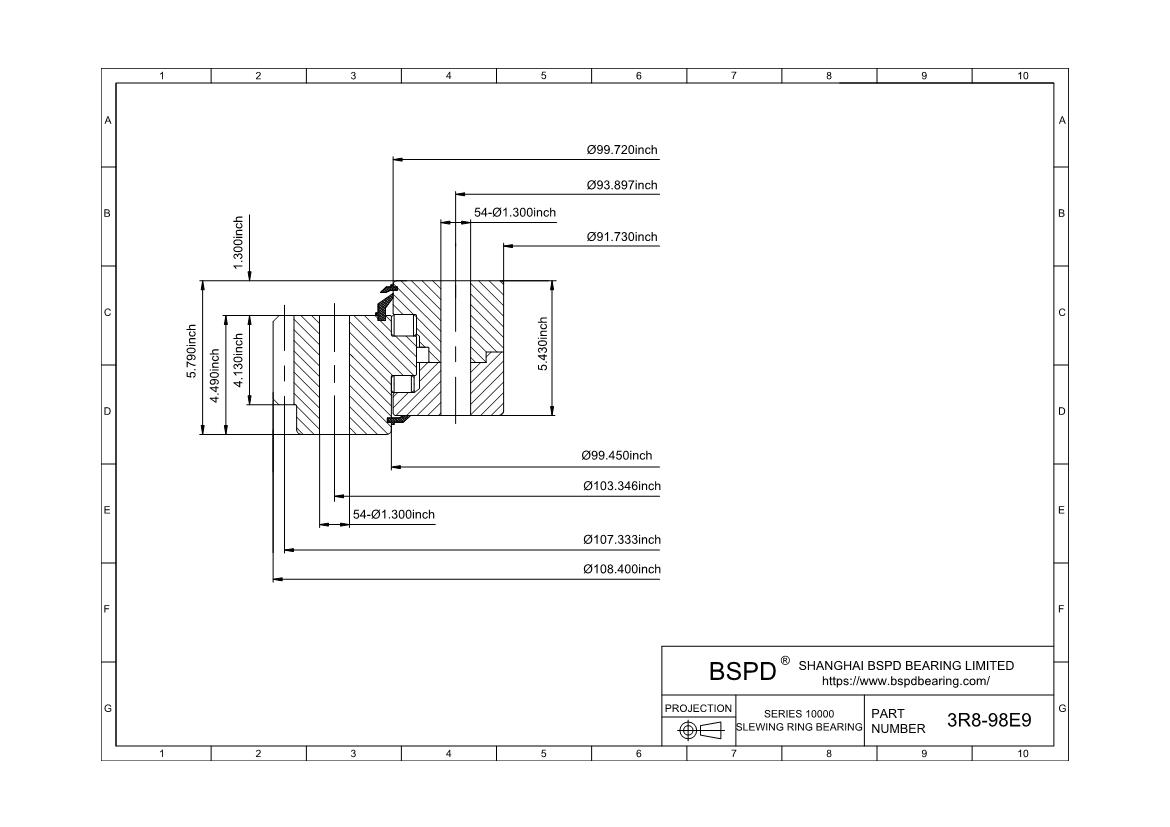

| Outline Dimensions(inches) | |
| HT | 5.79 |
| OH | 4.49 |
| K | 1.30 |
| IH | 5.43 |
| OD | 108.400 |
| OI | 99.45 |
| IO | 99.72 |
| ID | 91.73 |
| PD | 107.333 |
| DP | 1.5 |
| Mounting Holes | |
| OBC | 103.346 |
| OU | 1.30 |
| No of OBC Holes | 54 |
| IBC | 93.897 |
| IU | 1.30 |
| No of IBC Holes | 54 |
| Gear Data | |
| Tooth From 20 | STUB |
| Gear Hardness(BHN) | 250-300 |
| F | 4.13 |
| NO of Teeth | 161 |
| Max.allow tang.tooth load(lbs) | 50355 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 3R8-98E9 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
