3R8-88P9
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 81.1"； Outer Diameter: 94.88"； Width (Thickness): 5.79";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R8-88P9 |
| Curve No. | 8-88 |
| Radial(lbs) | 441000 |
| Compresive Thrust(lbs) | 3112000 |
| Moment(ft-lbs) | 5018000 |
| Weight(lbs) | 2249 |
| Thrust Capacity(lbs) | |

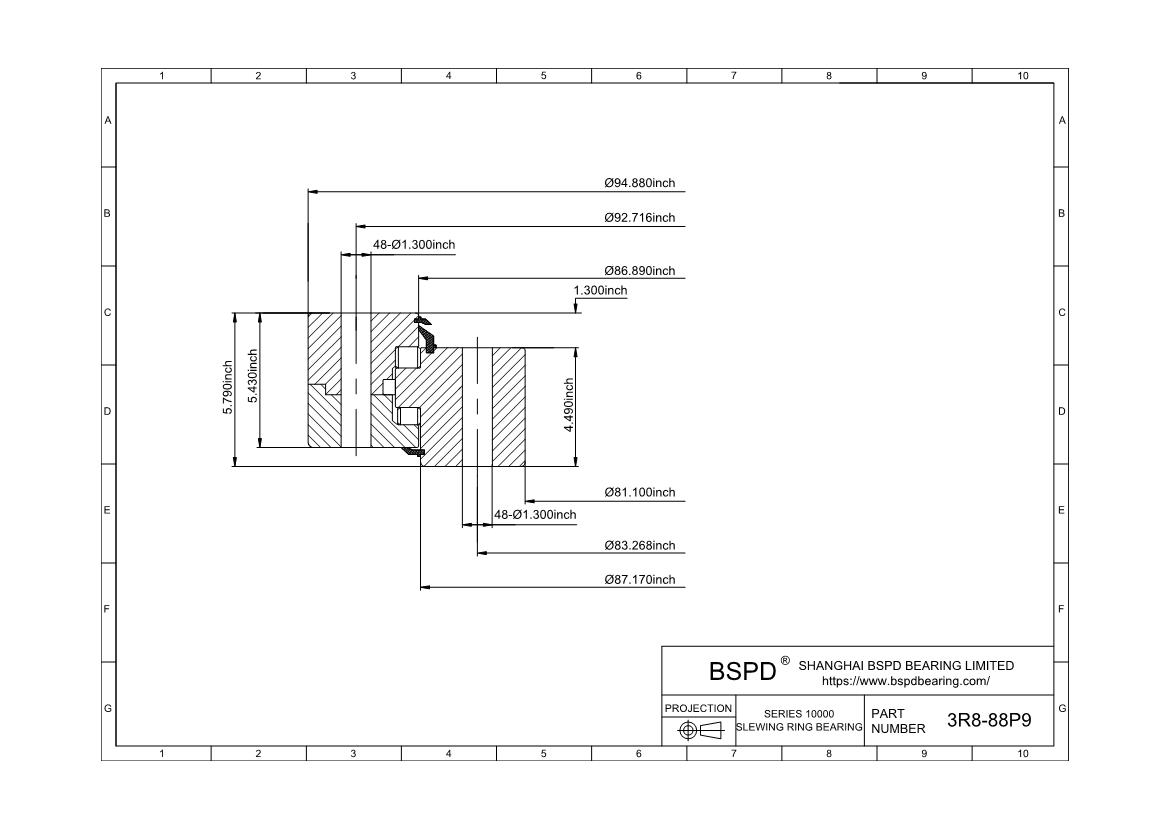

| Outline Dimensions(inches) | |
| HT | 5.79 |
| OH | 5.43 |
| K | 1.30 |
| IH | 4.49 |
| OD | 94.88 |
| OI | 86.89 |
| IO | 87.17 |
| ID | 81.10 |
| PD | |
| DP | |
| Mounting Holes | |
| OBC | 92.176 |
| OU | 1.30 |
| No of OBC Holes | 48 |
| IBC | 83.268 |
| IU | 1.30 |
| No of IBC Holes | 48 |
| Gear Data | |
| Tooth From 20 | |
| Gear Hardness(BHN) | 250-300 |
| F | |
| NO of Teeth | |
| Max.allow tang.tooth load(lbs) | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
