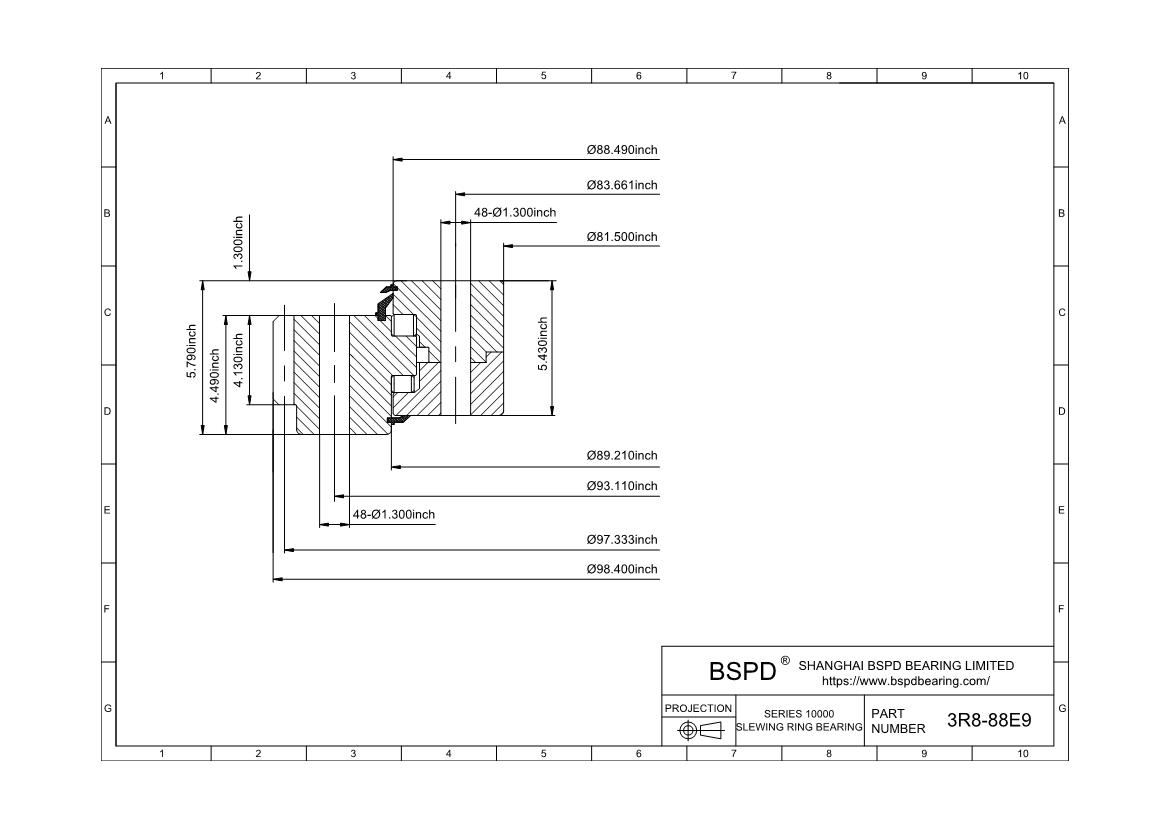

3R8-88E9
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 81.5"； Outer Diameter: 98.4"； Width (Thickness): 5.79";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R8-88E9 |
| Curve No. | 8-88 |
| Radial(lbs) | 422000 |
| Compresive Thrust(lbs) | 3112000 |
| Moment(ft-lbs) | 5018000 |
| Weight(lbs) | 2657 |
| Thrust Capacity(lbs) | |
| Outline Dimensions(inches) | |
| HT | 5.79 |
| OH | 4.49 |
| K | 1.30 |
| IH | 5.43 |
| OD | 98.400 |
| OI | 89.21 |
| IO | 89.49 |
| ID | 81.50 |
| PD | 97.333 |
| DP | 1.5 |
| Mounting Holes | |
| OBC | 93.110 |
| OU | 1.30 |
| No of OBC Holes | 48 |
| IBC | 83.661 |
| IU | 1.30 |
| No of IBC Holes | 48 |
| Gear Data | |
| Tooth From 20 | STUB |
| Gear Hardness(BHN) | 250-300 |
| F | 4.13 |
| NO of Teeth | 146 |
| Max.allow tang.tooth load(lbs) | 49764 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 3R8-88E9 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
