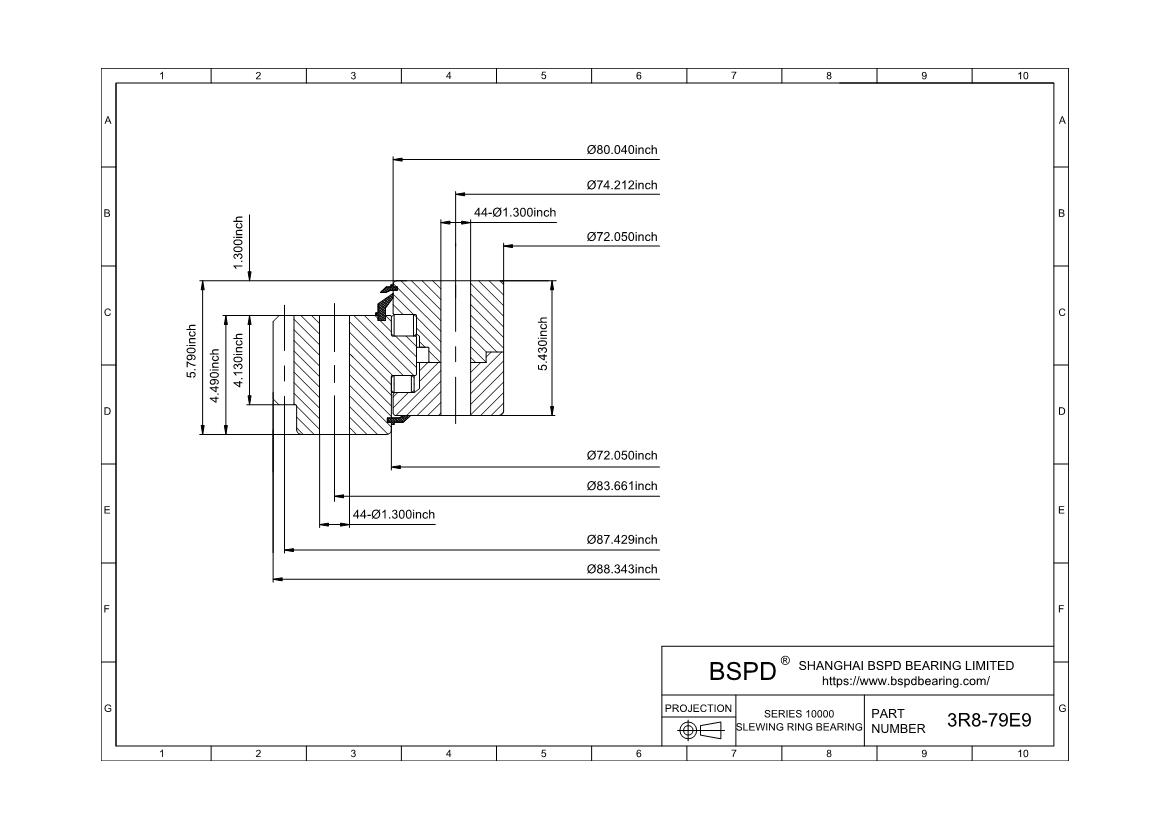

3R8-79E9
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 72.05"； Outer Diameter: 88.343"； Width (Thickness): 5.79";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R8-79E9 |
| Curve No. | 8-79 |
| Radial(lbs) | 376000 |
| Compresive Thrust(lbs) | 2779000 |
| Moment(ft-lbs) | 3997000 |
| Weight(lbs) | 2284 |
| Thrust Capacity(lbs) | |
| Outline Dimensions(inches) | |
| HT | 5.79 |
| OH | 4.49 |
| K | 1.30 |
| IH | 5.43 |
| OD | 88.343 |
| OI | 79.76 |
| IO | 80.04 |
| ID | 72.05 |
| PD | 87.429 |
| DP | 1.75 |
| Mounting Holes | |
| OBC | 83.661 |
| OU | 1.30 |
| No of OBC Holes | 44 |
| IBC | 74.212 |
| IU | 1.30 |
| No of IBC Holes | 44 |
| Gear Data | |
| Tooth From 20 | STUB |
| Gear Hardness(BHN) | 250-300 |
| F | 4.13 |
| NO of Teeth | 153 |
| Max.allow tang.tooth load(lbs) | 42901 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 3R8-79E9 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
