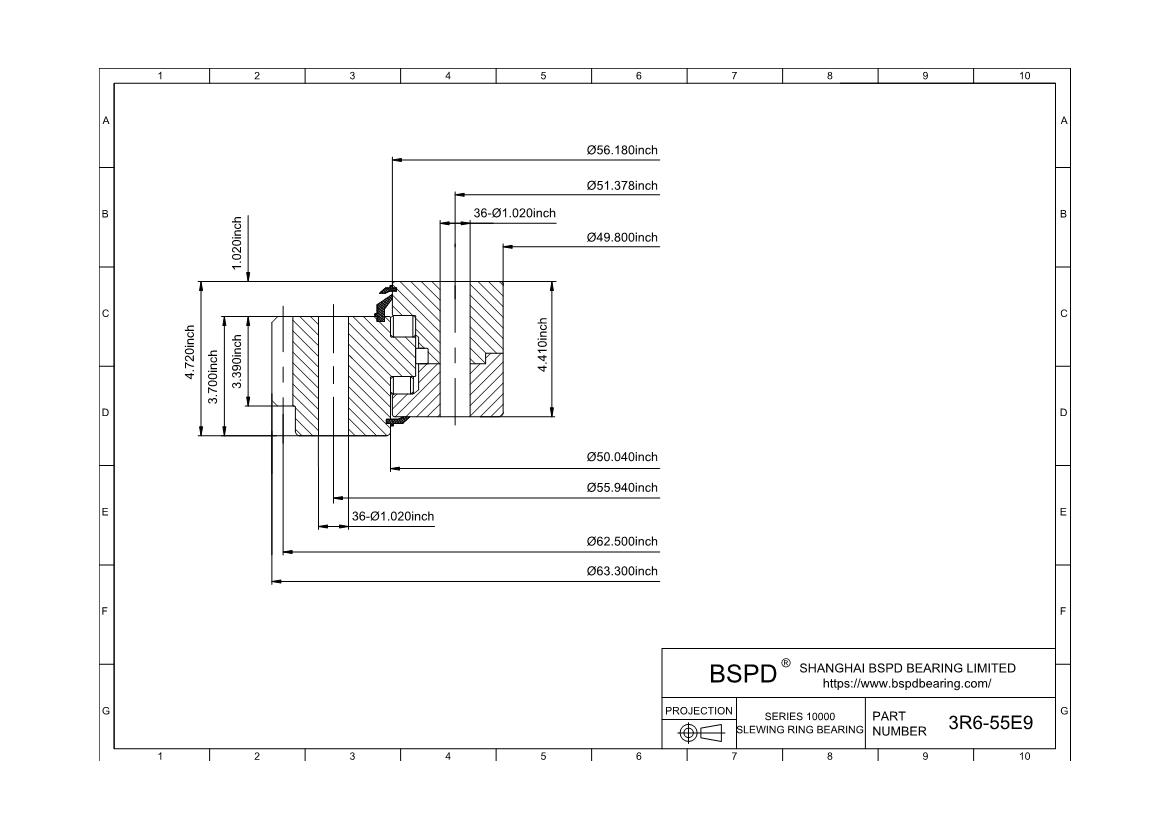

3R6-55E9
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 49.8"； Outer Diameter: 63.3"； Width (Thickness): 4.72";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R6-55E9 |
| Curve No. | 6-55 |
| Radial(lbs) | 194000 |
| Compresive Thrust(lbs) | 1751000 |
| Moment(ft-lbs) | 1527000 |
| Weight(lbs) | 917 |
| Thrust Capacity(lbs) | |
| Outline Dimensions(inches) | |
| HT | 4.72 |
| OH | 3.70 |
| K | 1.02 |
| IH | 4.41 |
| OD | 63.300 |
| OI | 55.94 |
| IO | 56.18 |
| ID | 49.80 |
| PD | 62.500 |
| DP | 2.0 |
| Mounting Holes | |
| OBC | 59.251 |
| OU | 1.02 |
| No of OBC Holes | 36 |
| IBC | 51.378 |
| IU | 1.02 |
| No of IBC Holes | 36 |
| Gear Data | |
| Tooth From 20 | STUB |
| Gear Hardness(BHN) | 250-300 |
| F | 3.39 |
| NO of Teeth | 125 |
| Max.allow tang.tooth load(lbs) | 30179 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
