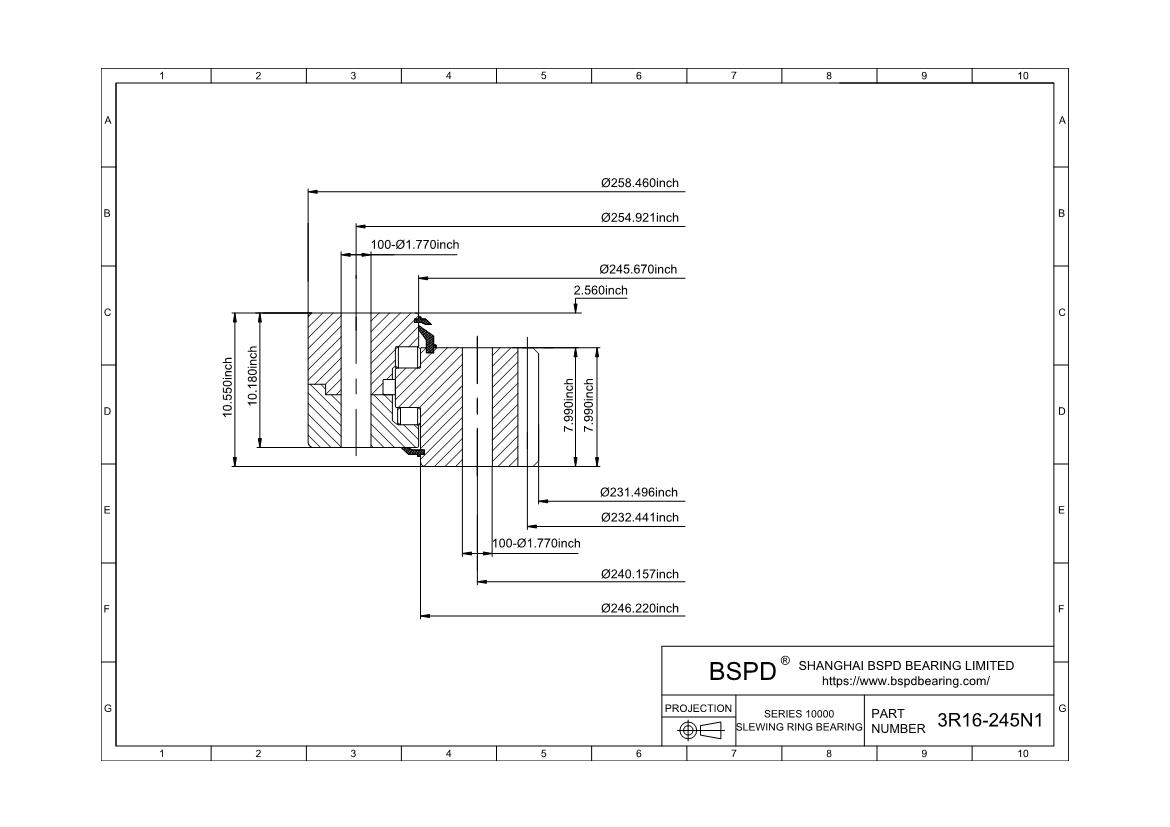

3R16-245N1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 231.496"； Outer Diameter: 258.46"； Width (Thickness): 10.55";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R16-245N1 |
| Curve No. | |
| Radial(lbs) | 1950000 |
| Compresive Thrust(lbs) | 17980000 |
| Moment(ft-lbs) | 82600000 |
| Weight(lbs) | 24979 |
| Thrust Capacity(lbs) | |
| Outline Dimensions(inches) | |
| HT | 10.55 |
| OH | 10.16 |
| K | 2.56 |
| IH | 7.99 |
| OD | 258.46 |
| OI | 245.67 |
| IO | 246.220 |
| ID | 231.496 |
| PD | 232.441 |
| DP | 24MODULE |
| Mounting Holes | |
| OBC | 254.921 |
| OU | 1.77 |
| No of OBC Holes | 100 |
| IBC | 240.157 |
| IU | 1.77 |
| No of IBC Holes | 100 |
| Gear Data | |
| Tooth From 20 | FD |
| Gear Hardness(BHN) | 250-300 |
| F | 7.99 |
| NO of Teeth | 246 |
| Max.allow tang.tooth load(lbs) | 190458 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 3R16-245N1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
