3R6-49E9
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 43.9"； Outer Diameter: 57.04"； Width (Thickness): 4.72";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R6-49E9 |
| Curve No. | 6-49 |
| Radial(lbs) | 17200 |
| Compresive Thrust(lbs) | 1563000 |
| Moment(ft-lbs) | 1218000 |
| Weight(lbs) | 917 |
| Thrust Capacity(lbs) | |

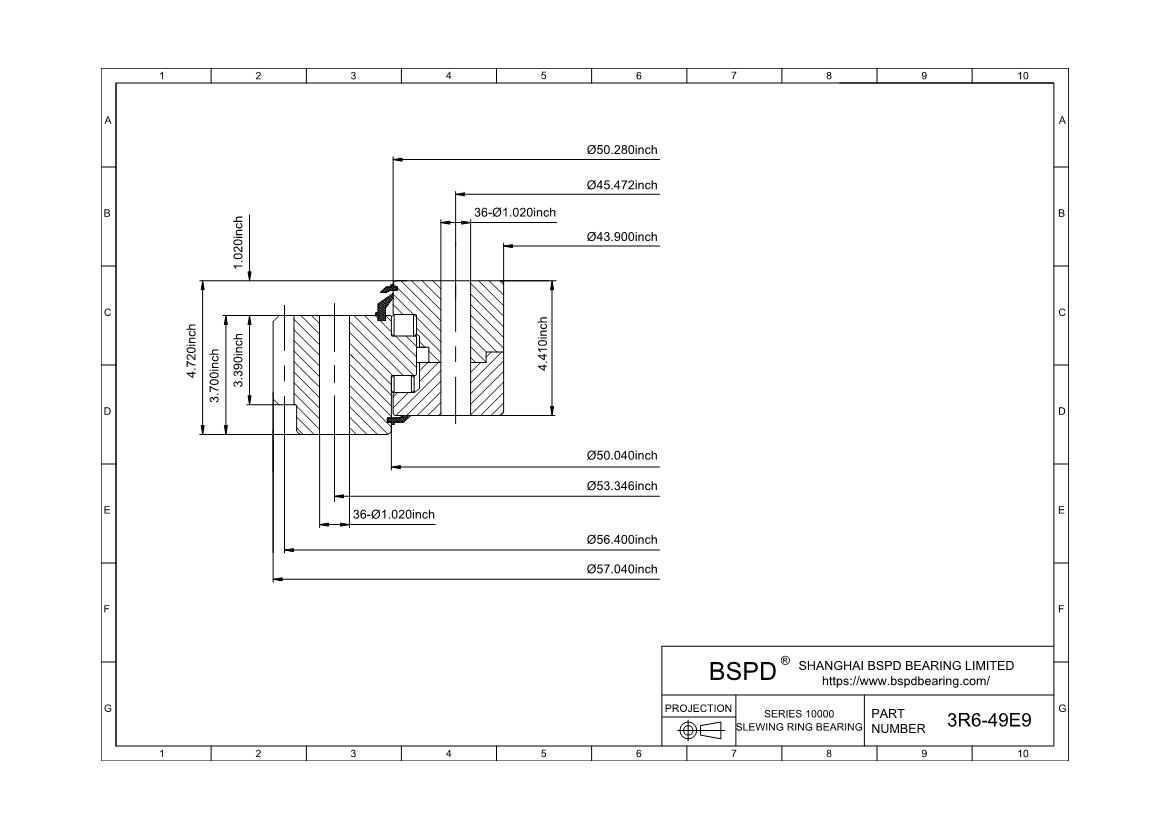

| Outline Dimensions(inches) | |
| HT | 4.72 |
| OH | 3.70 |
| K | 1.02 |
| IH | 4.41 |
| OD | 57.040 |
| OI | 50.04 |
| IO | 50.28 |
| ID | 43.90 |
| PD | 56.400 |
| DP | 2.5 |
| Mounting Holes | |
| OBC | 53.346 |
| OU | 1.02 |
| No of OBC Holes | 36 |
| IBC | 45.472 |
| IU | 1.02 |
| No of IBC Holes | 36 |
| Gear Data | |
| Tooth From 20 | STUB |
| Gear Hardness(BHN) | 250-300 |
| F | 3.39 |
| NO of Teeth | 141 |
| Max.allow tang.tooth load(lbs) | 24.423 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 3R6-49E9 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
