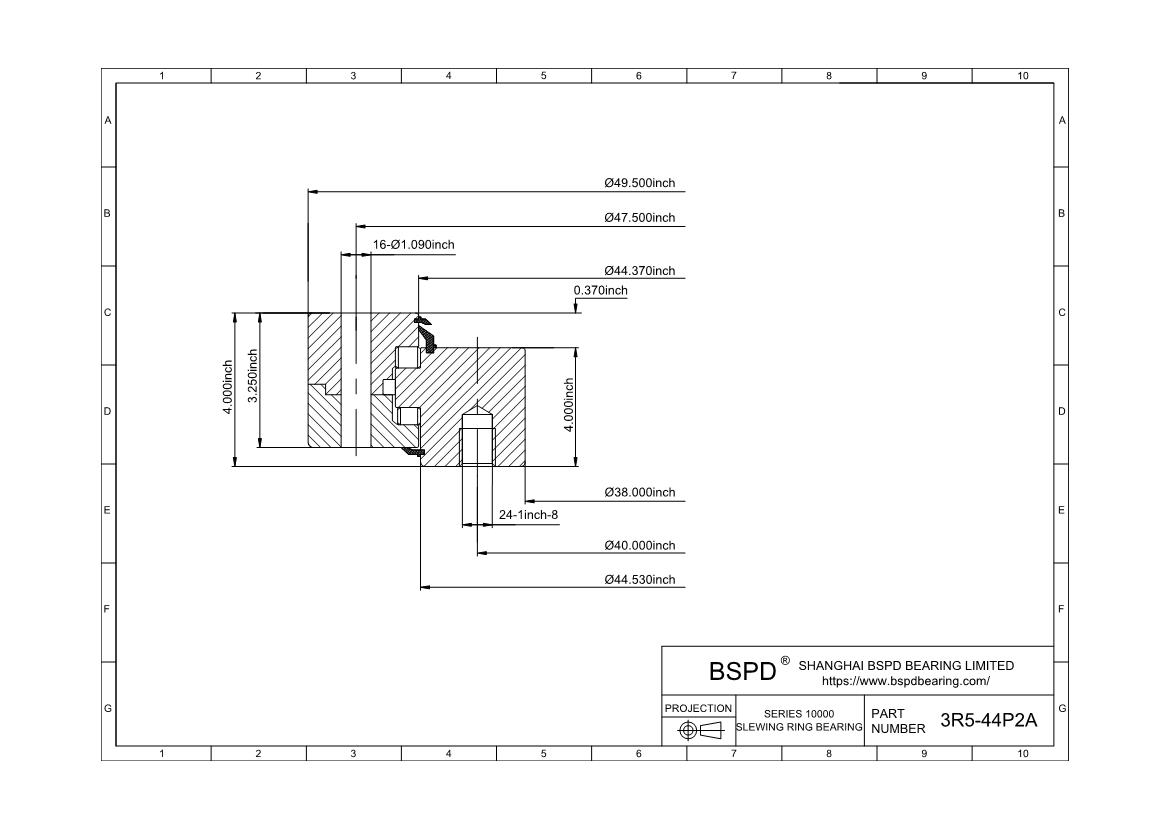

3R5-44P2A
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 38.0"； Outer Diameter: 49.5"； Width (Thickness): 4.00";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R5-44P2A |
| Curve No. | 5-44 |
| Radial(lbs) | 151000 |
| Compresive Thrust(lbs) | 1019000 |
| Moment(ft-lbs) | 901000 |
| Weight(lbs) | 776 |
| Thrust Capacity(lbs) | |
| Outline Dimensions(inches) | |
| HT | 4.00 |
| OH | 3.25 |
| K | .37 |
| IH | 4.00 |
| OD | 49.50 |
| OI | 44.37 |
| IO | 44.53 |
| ID | 38.00 |
| PD | |
| DP | |
| Mounting Holes | |
| OBC | 47.500 |
| OU | 1.09 |
| No of OBC Holes | 16 |
| IBC | 40.000 |
| IU | 1-8 |
| No of IBC Holes | 24 |
| Gear Data | |
| Tooth From 20 | |
| Gear Hardness(BHN) | 250-300 |
| F | |
| NO of Teeth | |
| Max.allow tang.tooth load(lbs) | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 3R5-44P2A ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
