3R16-265E1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 254.72"； Outer Diameter: 281.368"； Width (Thickness): 10.55";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R16-265E1 |
| Curve No. | |
| Radial(lbs) | 1950000 |
| Compresive Thrust(lbs) | 17980000 |
| Moment(ft-lbs) | 82600000 |
| Weight(lbs) | 24692 |
| Thrust Capacity(lbs) | |

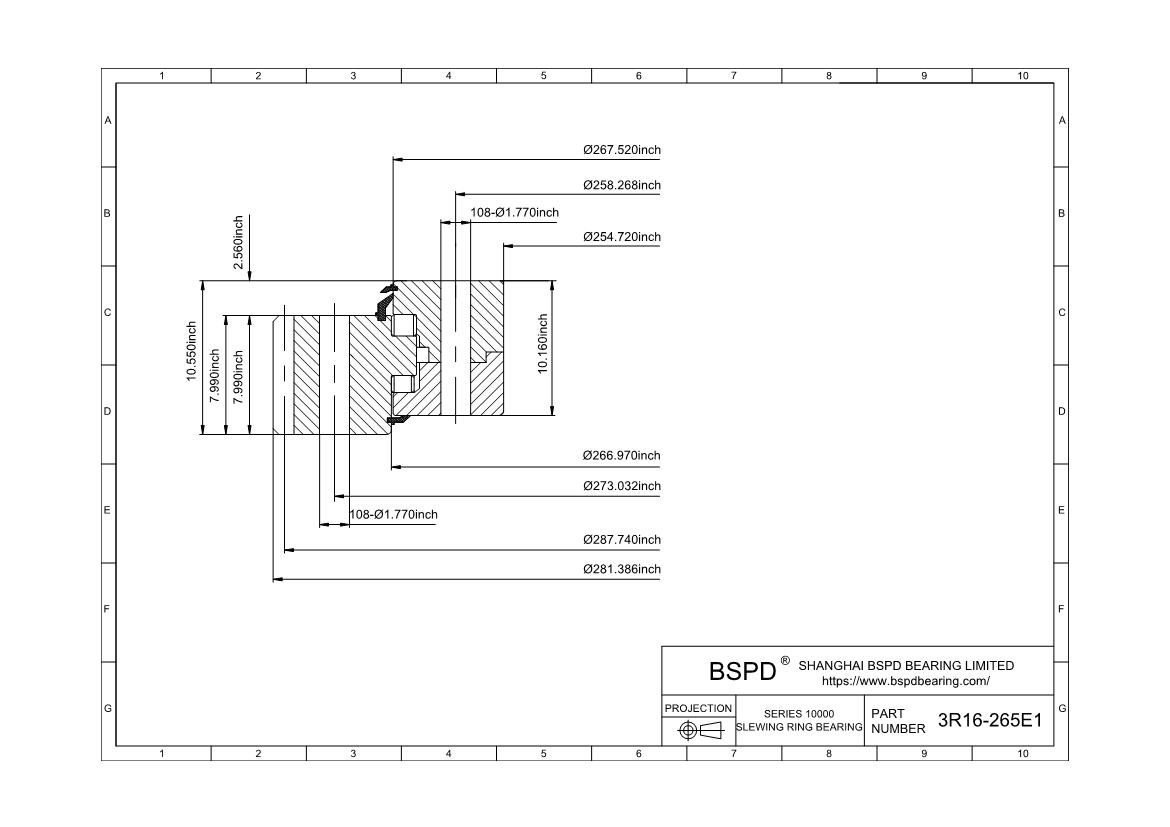

| Outline Dimensions(inches) | |
| HT | 10.55 |
| OH | 7.99 |
| K | 2.56 |
| IH | 10.16 |
| OD | 281.368 |
| OI | 266.97 |
| IO | 267.52 |
| ID | 254.72 |
| PD | 287.740 |
| DP | 24Module |
| Mounting Holes | |
| OBC | 273.032 |
| OU | 1.77 |
| No of OBC Holes | 108 |
| IBC | 258.268 |
| IU | 1.77 |
| No of IBC Holes | 108 |
| Gear Data | |
| Tooth From 20 | FD |
| Gear Hardness(BHN) | 250-300 |
| F | 7.99 |
| NO of Teeth | 295 |
| Max.allow tang.tooth load(lbs) | 190456 |
Print PDF
Request a 3D CAD Model
