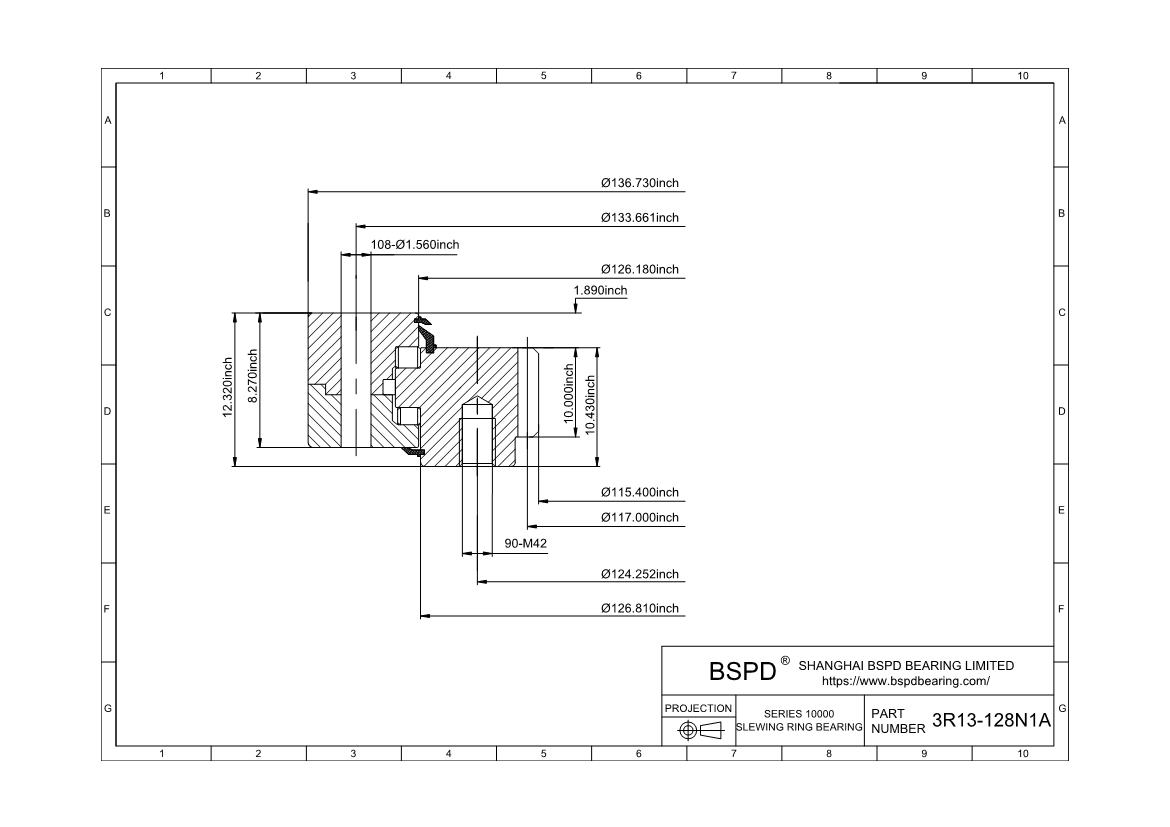

3R13-128N1A
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 115.4"； Outer Diameter: 136.73"； Width (Thickness): 12.32";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R13-128N1A |
| Curve No. | 13-128 |
| Radial(lbs) | 678000 |
| Compresive Thrust(lbs) | 6211000 |
| Moment(ft-lbs) | 14177000 |
| Weight(lbs) | 9000 |
| Thrust Capacity(lbs) | |
| Outline Dimensions(inches) | |
| HT | 12.32 |
| OH | 8.27 |
| K | 1.89 |
| IH | 10.43 |
| OD | 136.73 |
| OI | 126.18 |
| IO | 126.81 |
| ID | 115.40 |
| PD | 117.000 |
| DP | 1.0 |
| Mounting Holes | |
| OBC | 133.661 |
| OU | 1.56 |
| No of OBC Holes | 108 |
| IBC | 124.252 |
| IU | M42 |
| No of IBC Holes | 90 |
| Gear Data | |
| Tooth From 20 | STUB |
| Gear Hardness(BHN) | 250-300 |
| F | 10.00 |
| NO of Teeth | 117 |
| Max.allow tang.tooth load(lbs) | 234.000 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 3R13-128N1A ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
