3R10-82E3C
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 72.25"； Outer Diameter: 94.742"； Width (Thickness): 9.12";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R10-82E3C |
| Curve No. | 10-82 |
| Radial(lbs) | 449000 |
| Compresive Thrust(lbs) | 5581000 |
| Moment(ft-lbs) | 6776000 |
| Weight(lbs) | 5291 |
| Thrust Capacity(lbs) | |

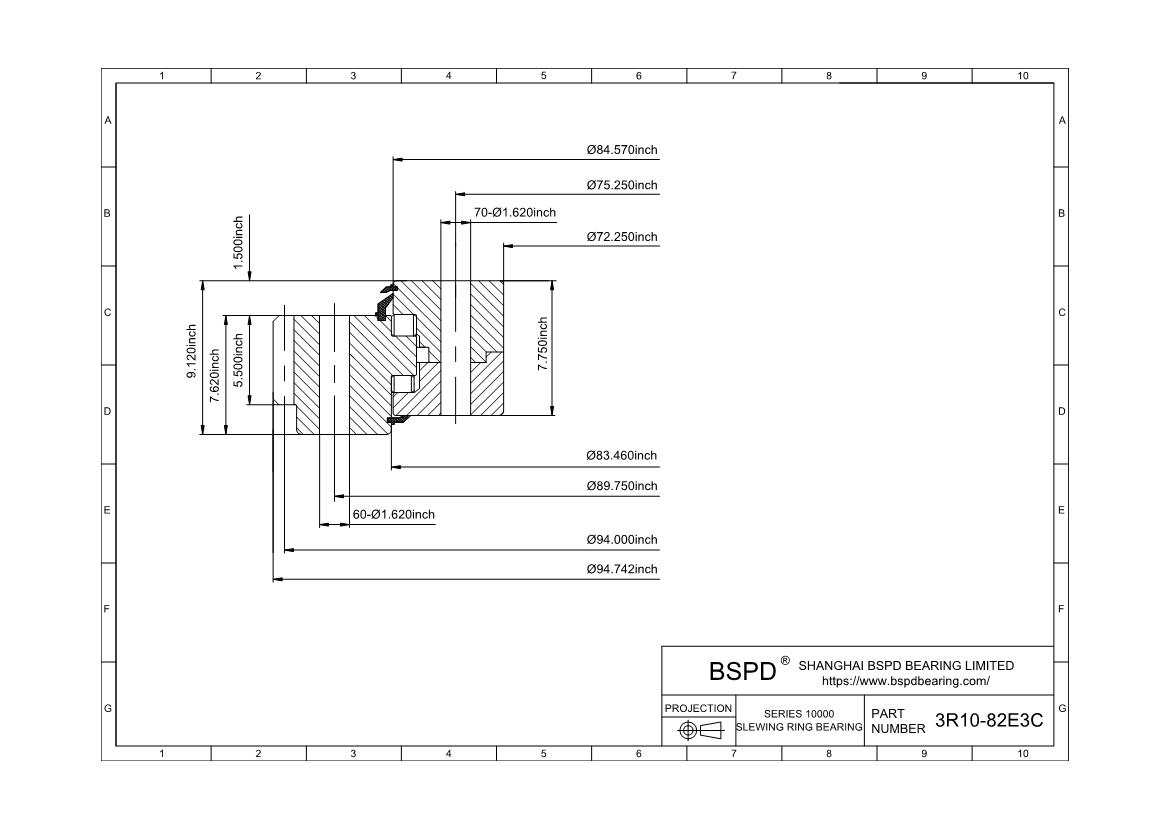

| Outline Dimensions(inches) | |
| HT | 9.12 |
| OH | 7.62 |
| K | 1.50 |
| IH | 7.75 |
| OD | 94.742 |
| OI | 83.46 |
| IO | 84.57 |
| ID | 72.25 |
| PD | 94.000 |
| DP | 2.0 |
| Mounting Holes | |
| OBC | 89.750 |
| OU | 1.62 |
| No of OBC Holes | 60 |
| IBC | 75.250 |
| IU | 1.62 |
| No of IBC Holes | 70 |
| Gear Data | |
| Tooth From 20 | STUB |
| Gear Hardness(BHN) | 250-300 |
| F | 5.50 |
| NO of Teeth | 188 |
| Max.allow tang.tooth load(lbs) | 48.741 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 3R10-82E3C ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
