3R10-125P1B
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 116.54"； Outer Diameter: 133.94"； Width (Thickness): 7.24";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 3R10-125P1B |
| Curve No. | 10-125 |
| Radial(lbs) | 763000 |
| Compresive Thrust(lbs) | 4330000 |
| Moment(ft-lbs) | 10428000 |
| Weight(lbs) | 5480 |
| Thrust Capacity(lbs) | |

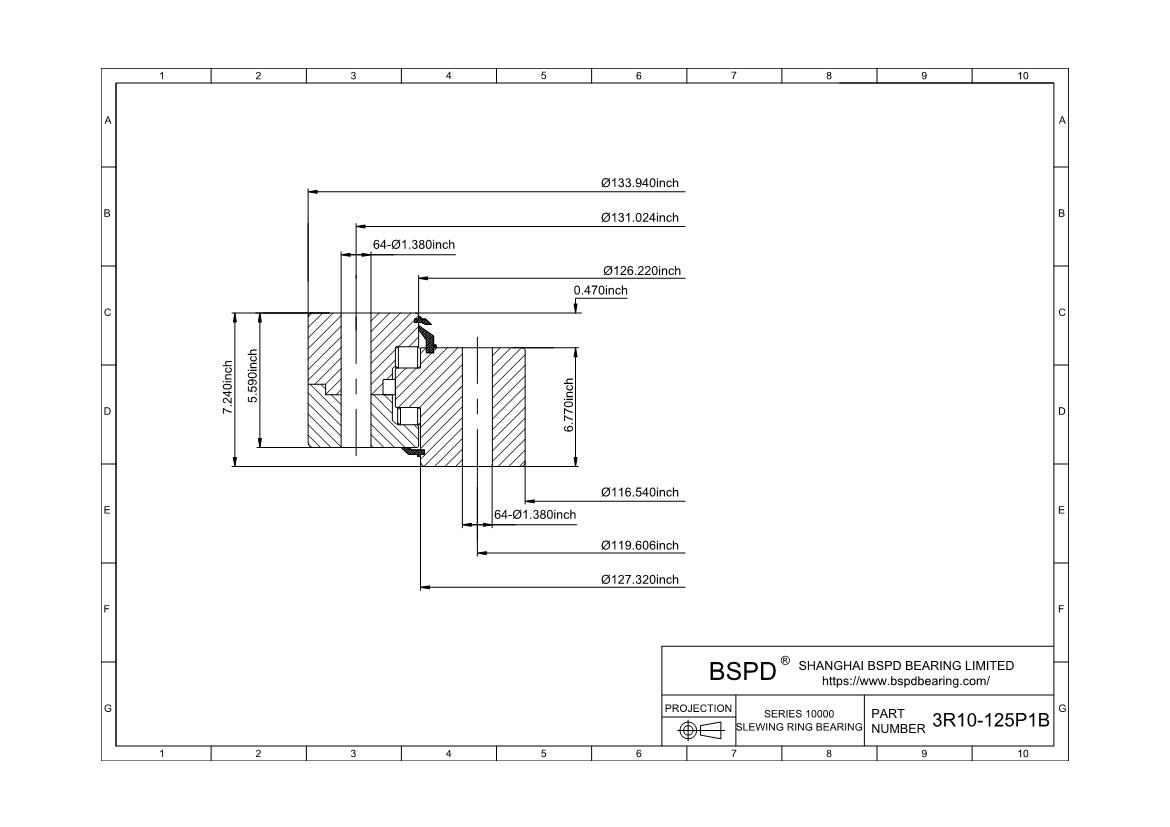

| Outline Dimensions(inches) | |
| HT | 7.24 |
| OH | 5.59 |
| K | .47 |
| IH | 6.77 |
| OD | 133.94 |
| OI | 126.22 |
| IO | 127.32 |
| ID | 116.54 |
| PD | |
| DP | |
| Mounting Holes | |
| OBC | 131.024 |
| OU | 1.38 |
| No of OBC Holes | 64 |
| IBC | 119.606 |
| IU | 1.38 |
| No of IBC Holes | 64 |
| Gear Data | |
| Tooth From 20 | |
| Gear Hardness(BHN) | 250-300 |
| F | |
| NO of Teeth | |
| Max.allow tang.tooth load(lbs) | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 3R10-125P1B ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
