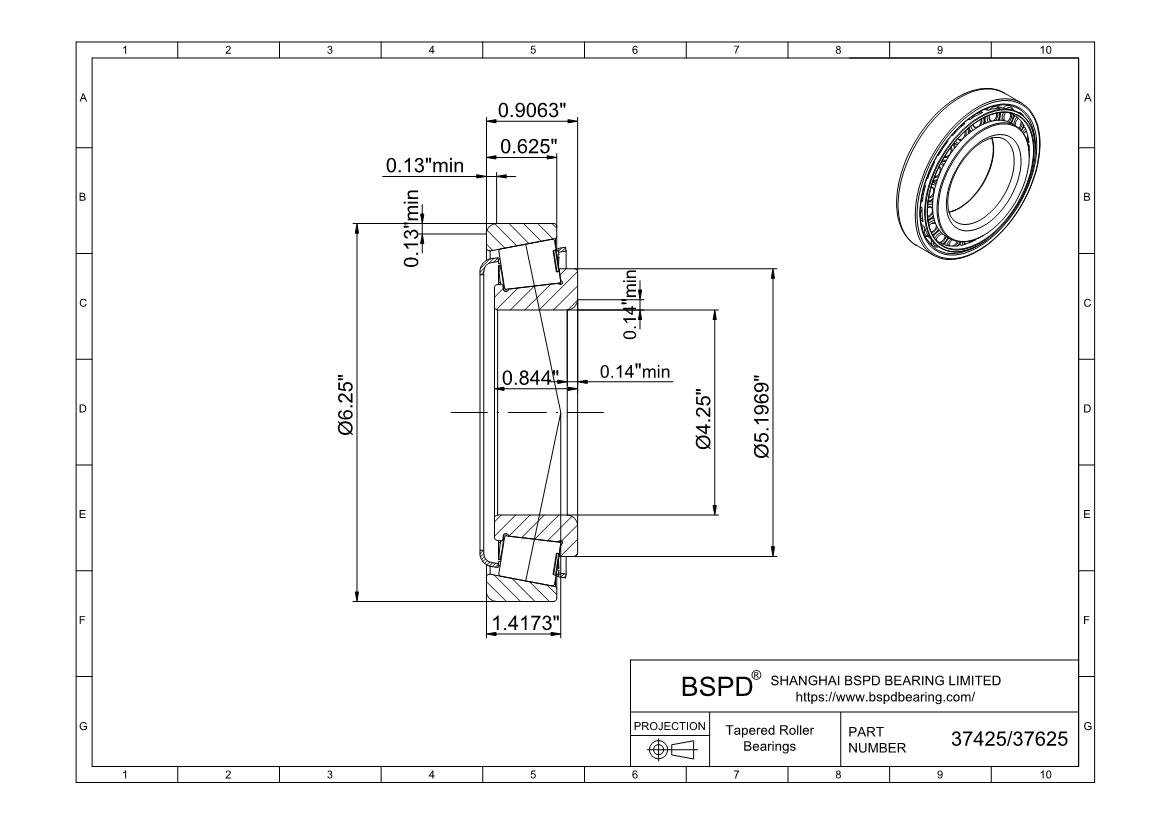

37425/37625
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 4.2500 "； Outer Diameter: 6.2500 "； Width (Thickness): 0.9063 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | 37425/37625 |
| Bore diameter | 4.2500 " |
| Outside diameter | 6.2500 " |
| Total width | 0.9063 " |
| Shoulder diameter of inner ring | 5.1969 " |
| Widthof inner ring | 0.8440 " |
| Width of outer ring | 0.6250 " |
| Chamfer minimum dimension of inner ring (r1,2) | 3.5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3.3 |
| Distance side face to pressure point (a) | 36 |
| Basic dynamic load rating (Cr) | 124 |
| Basic static load rating (Cor) | 163 |
| Fatigue load limit (Pu) | 18.3 |
| Reference speed | 3200 r/min |
| Limiting speed | 3800 r/min |
| Mass | 1.4 kg |
| Limiting value (e) | 0.6 |
| Axial load factor (Y) | 1 |
| Axial load factor (Y0) | 0.6 |
| Maximum diameter of shaft abutment (da) | 120 mm |
| Minimum diameter of shaft abutment (db) | 123 mm |
| Minimum diameter of housing abutment (Da) | 140 mm |
| Maximum diameter of housing abutment (Da) | 145 mm |
| Minimum diameter of housing abutment (Db) | 149 mm |
| Minimum width of space required in housing on large side face (C | 4 mm |
| Minimum width of space required in housing on small side face (C | 7 mm |
| Maximum Radius of shaft fillet (ra) | 3.5 mm |
| Maximum Radius of housing fillet (rb) | 3.3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
