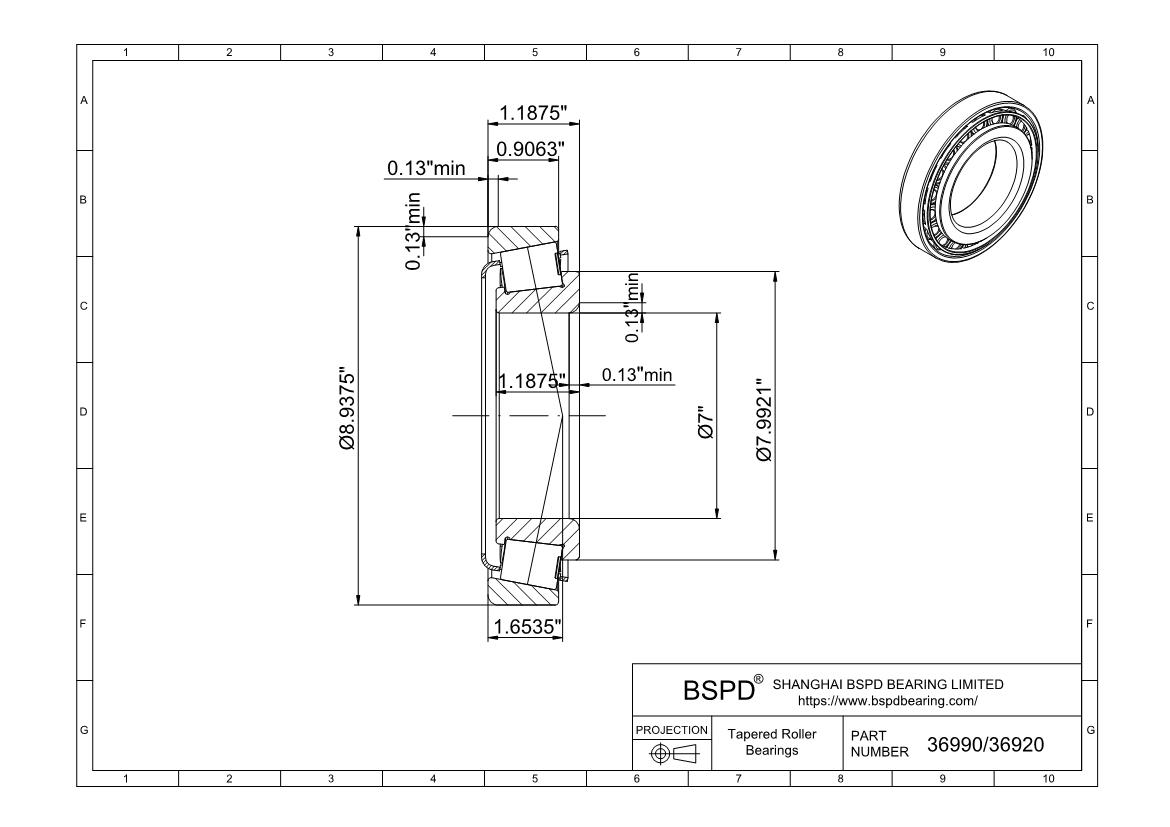

36990/36920
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 7.0000 "； Outer Diameter: 8.9375 "； Width (Thickness): 1.1875 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | 36990/36920 |
| Bore diameter | 7.0000 " |
| Outside diameter | 8.9375 " |
| Total width | 1.1875 " |
| Shoulder diameter of inner ring | 7.9921 " |
| Widthof inner ring | 1.1875 " |
| Width of outer ring | 0.9063 " |
| Chamfer minimum dimension of inner ring (r1,2) | 1.5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 1.5 |
| Distance side face to pressure point (a) | 42 |
| Basic dynamic load rating (Cr) | 231 |
| Basic static load rating (Cor) | 425 |
| Fatigue load limit (Pu) | 40 |
| Reference speed | 2000 r/min |
| Limiting speed | 2400 r/min |
| Mass | 2.95 kg |
| Limiting value (e) | 0.44 |
| Axial load factor (Y) | 1.35 |
| Axial load factor (Y0) | 0.8 |
| Maximum diameter of shaft abutment (da) | 190 mm |
| Minimum diameter of shaft abutment (db) | 190 mm |
| Minimum diameter of housing abutment (Da) | 212 mm |
| Maximum diameter of housing abutment (Da) | 216 mm |
| Minimum diameter of housing abutment (Db) | 220 mm |
| Minimum width of space required in housing on large side face (C | 5 mm |
| Minimum width of space required in housing on small side face (C | 7 mm |
| Maximum Radius of shaft fillet (ra) | 1.5 mm |
| Maximum Radius of housing fillet (rb) | 1.5 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 36990/36920 ? Inch Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
