33895/33822

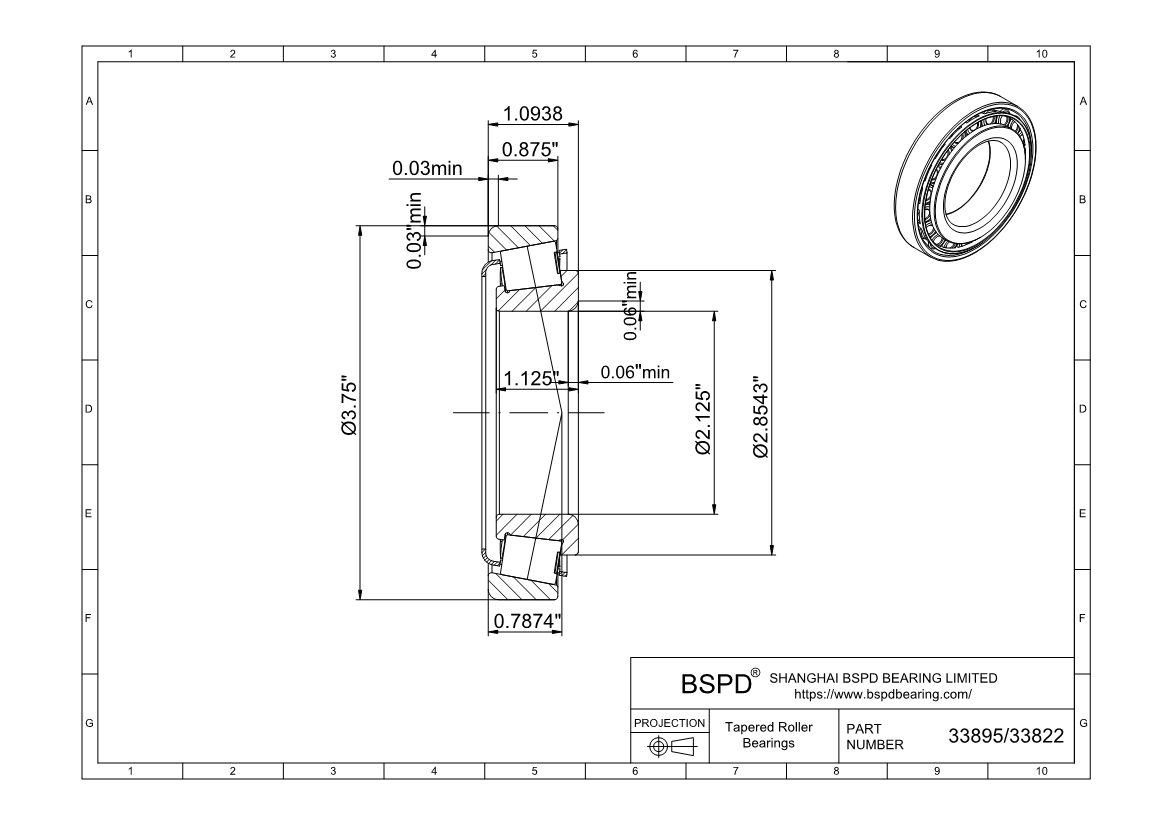

Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 2.1250 "； Outer Diameter: 3.7500 "； Width (Thickness): 1.0938 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | 33895/33822 |
| Bore diameter | 2.1250 " |
| Outside diameter | 3.7500 " |
| Total width | 1.0938 " |
| Shoulder diameter of inner ring | 2.8543 " |
| Widthof inner ring | 1.1250 " |
| Width of outer ring | 0.8750 " |
| Chamfer minimum dimension of inner ring (r1,2) | 1.5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 0.8 |
| Distance side face to pressure point (a) | 20 |
| Basic dynamic load rating (Cr) | 129 |
| Basic static load rating (Cor) | 137 |
| Fatigue load limit (Pu) | 16 |
| Reference speed | 5600 r/min |
| Limiting speed | 7000 r/min |
| Mass | 0.81 kg |
| Limiting value (e) | 0.33 |
| Axial load factor (Y) | 1.8 |
| Axial load factor (Y0) | 1 |
| Maximum diameter of shaft abutment (da) | 61 mm |
| Minimum diameter of shaft abutment (db) | 63 mm |
| Minimum diameter of housing abutment (Da) | 83 mm |
| Maximum diameter of housing abutment (Da) | 88 mm |
| Minimum diameter of housing abutment (Db) | 90 mm |
| Minimum width of space required in housing on large side face (C | 6 mm |
| Minimum width of space required in housing on small side face (C | 5.5 mm |
| Maximum Radius of shaft fillet (ra) | 1.5 mm |
| Maximum Radius of housing fillet (rb) | 0.8 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 33895/33822 ? Inch Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
