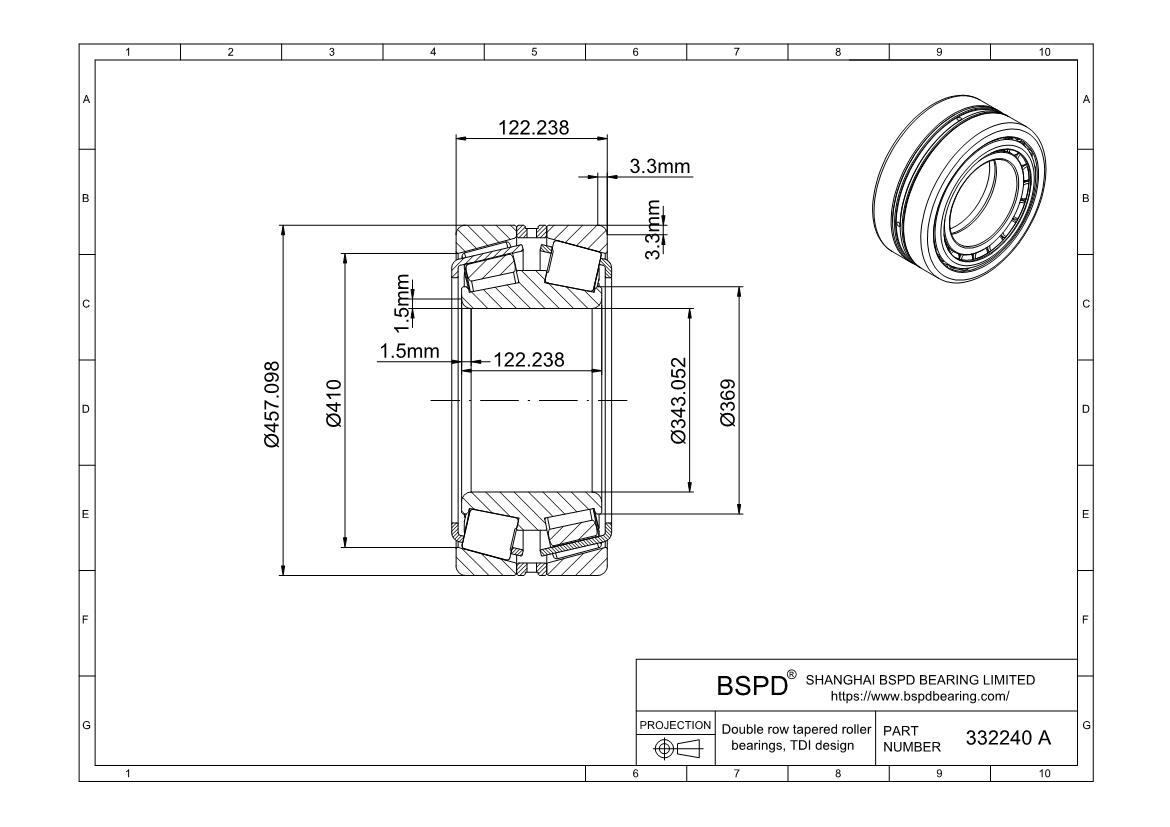

332240 A Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 343.052 mm； Outer Diameter: 457.098 mm； Width (Thickness): 122.238 mm;

332240 A
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number332240 A
Bore diameter343.052 mm
Outside diameter457.098 mm
Total width122.238 mm
Shoulder diameter of inner ring369 mm
Width of outer ring122.238 mm
Chamfer minimum dimension of inner ring (r1,2)1.5 mm
Chamfer minimum dimension of outer ring (r3,4)3.3 mm
Basic dynamic load rating (Cr)1610 kn
Basic static load rating (Cor)3400 kN
Fatigue load limit (Pu)280 kN
Mass54 kg
Limiting value (e)0.48
Axial load factor (Y0)1.4
Axial load factor (Y1)1.4
Axial load factor (Y2)2.1
Comparative radial load rating (CF)390
Comparative axial load rating (CFA)184
332240 A
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 332240 A ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
