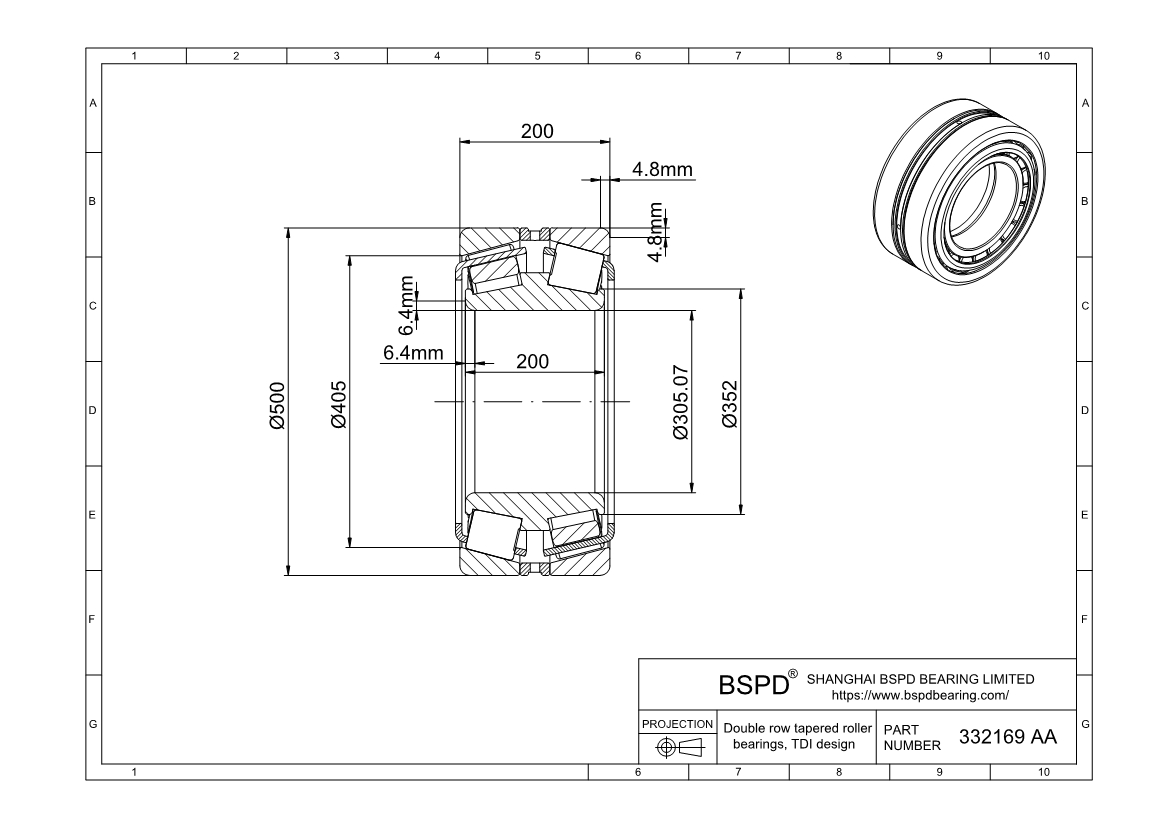

332169 AA Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 305.07 mm； Outer Diameter: 500 mm； Width (Thickness): 200 mm;

332169 AA
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number332169 AA
Bore diameter305.07 mm
Outside diameter500 mm
Total width200 mm
Shoulder diameter of inner ring352 mm
Width of outer ring200 mm
Chamfer minimum dimension of inner ring (r1,2)6.4 mm
Chamfer minimum dimension of outer ring (r3,4)4.8 mm
Basic dynamic load rating (Cr)2734 kn
Basic static load rating (Cor)5200 kN
Fatigue load limit (Pu)425 kN
Mass150 kg
Limiting value (e)0.88
Axial load factor (Y0)0.8
Axial load factor (Y1)0.77
Axial load factor (Y2)1.15
Comparative radial load rating (CF)680
Comparative axial load rating (CFA)582
Thrust factor (K)0.67
332169 AA
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 332169 AA ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
