332168
Double row tapered roller bearings& TDI design

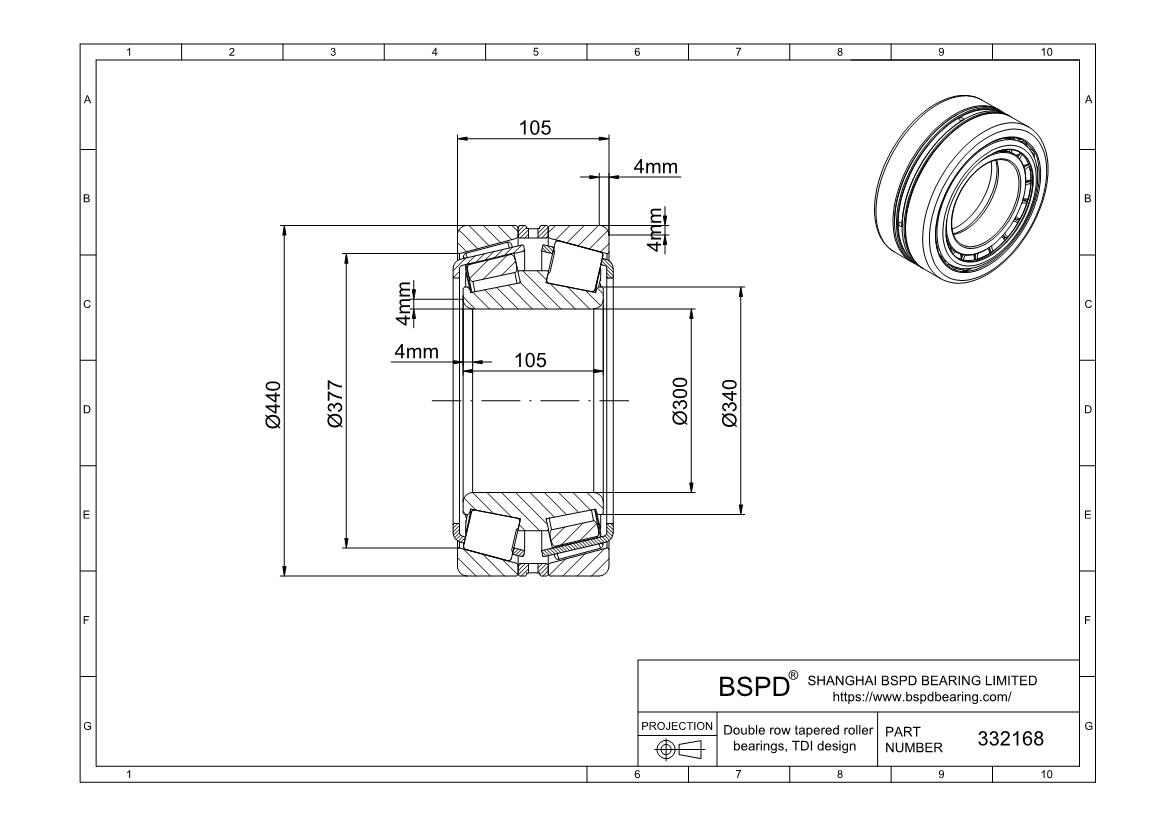

Dimensions: Bore (Inner) Diameter: 300 mm； Outer Diameter: 440 mm； Width (Thickness): 105 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 332168 |
| Bore diameter | 300 mm |
| Outside diameter | 440 mm |
| Total width | 105 mm |
| Shoulder diameter of inner ring | 340 mm |
| Width of outer ring | 105 mm |
| Chamfer minimum dimension of inner ring (r1,2) | 4 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 4 mm |
| Basic dynamic load rating (Cr) | 1076 kn |
| Basic static load rating (Cor) | 2040 kN |
| Fatigue load limit (Pu) | 180 kN |
| Mass | 48.5 kg |
| Limiting value (e) | 0.88 |
| Axial load factor (Y0) | 0.8 |
| Axial load factor (Y1) | 0.77 |
| Axial load factor (Y2) | 1.15 |
| Comparative radial load rating (CF) | 260 |
| Comparative axial load rating (CFA) | 224 |
| Thrust factor (K) | 0.67 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 332168 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
