332068 Double row tapered roller bearings& TDI design

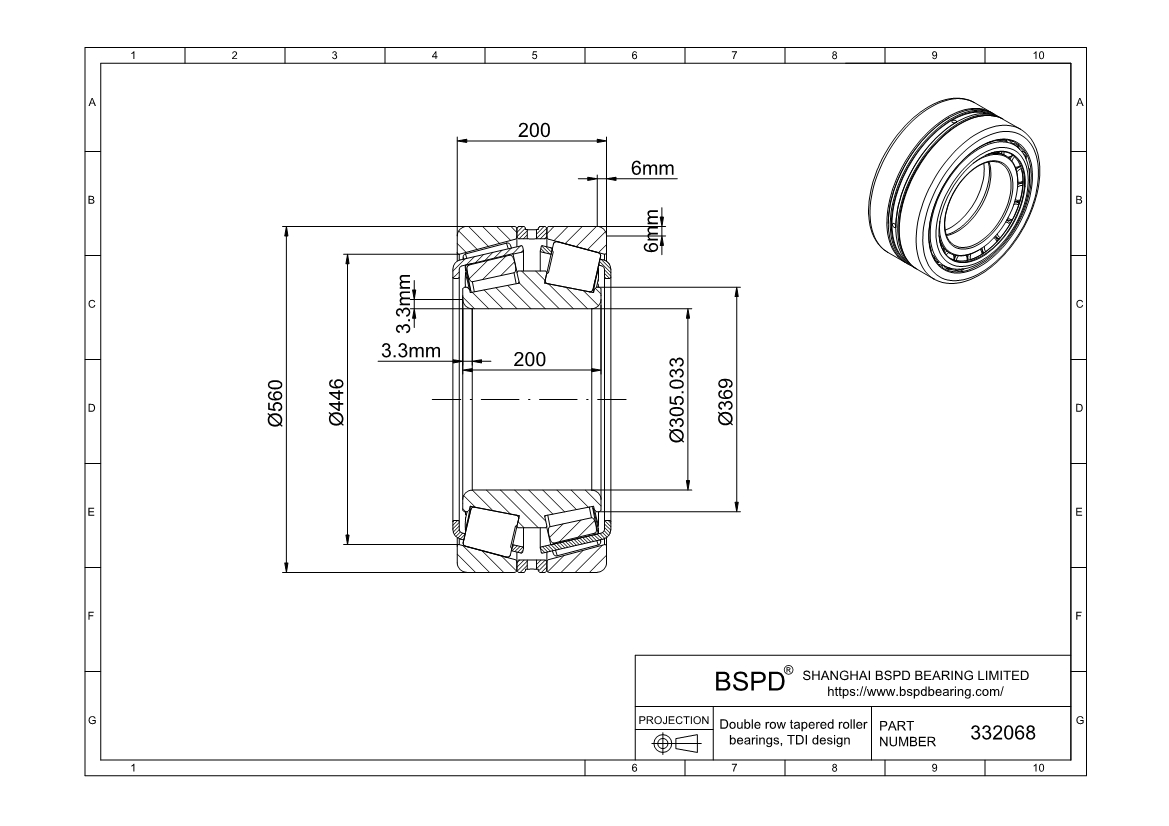

Dimensions: Bore (Inner) Diameter: 305.033 mm； Outer Diameter: 560 mm； Width (Thickness): 200 mm;

332068
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number332068
Bore diameter305.033 mm
Outside diameter560 mm
Total width200 mm
Shoulder diameter of inner ring369 mm
Width of outer ring200 mm
Chamfer minimum dimension of inner ring (r1,2)3.3 mm
Chamfer minimum dimension of outer ring (r3,4)6 mm
Basic dynamic load rating (Cr)1677 kn
Basic static load rating (Cor)5300 kN
Fatigue load limit (Pu)430 kN
Mass200 kg
Limiting value (e)0.88
Axial load factor (Y0)0.8
Axial load factor (Y1)0.77
Axial load factor (Y2)1.15
Comparative radial load rating (CF)765
Comparative axial load rating (CFA)657
Thrust factor (K)0.67
332068
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 332068 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
