331951

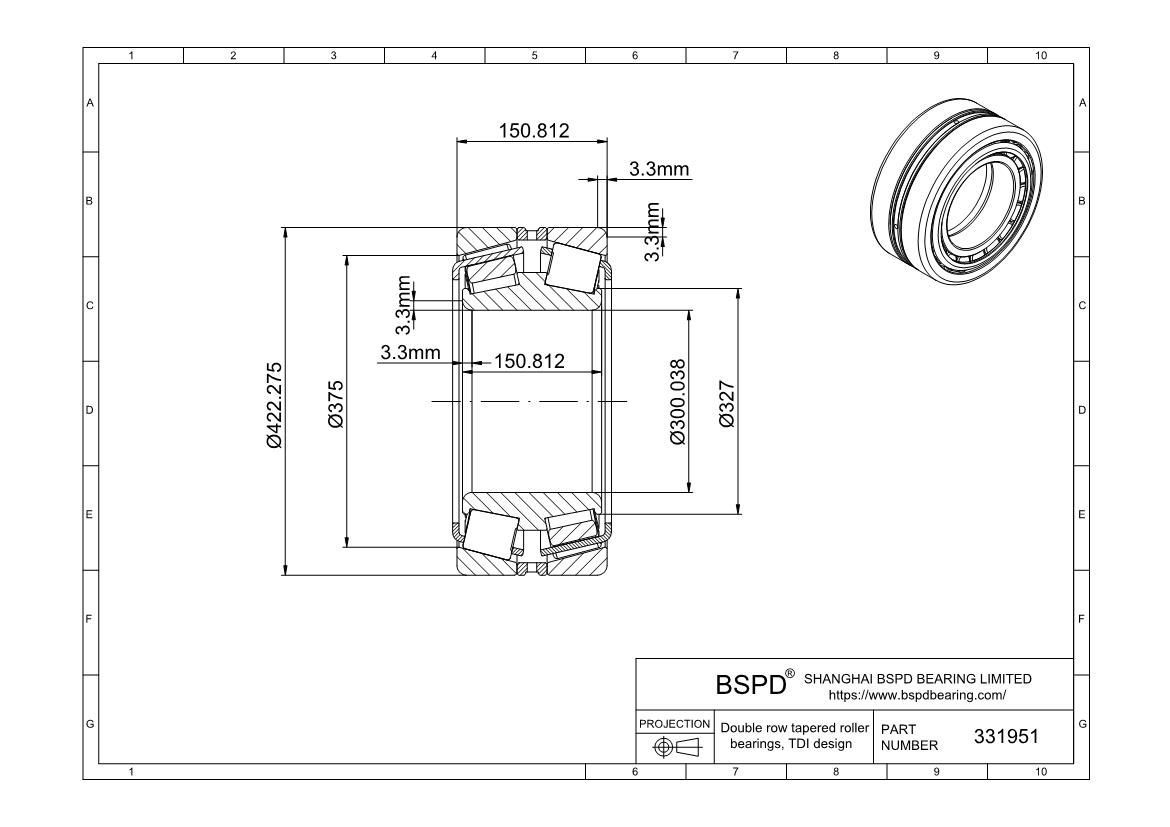

Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 300.038 mm； Outer Diameter: 422.275 mm； Width (Thickness): 150.812 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 331951 |
| Bore diameter | 300.038 mm |
| Outside diameter | 422.275 mm |
| Total width | 150.812 mm |
| Shoulder diameter of inner ring | 327 mm |
| Width of outer ring | 150.812 mm |
| Chamfer minimum dimension of inner ring (r1,2) | 3.3 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3.3 mm |
| Basic dynamic load rating (Cr) | 2177 kn |
| Basic static load rating (Cor) | 4750 kN |
| Fatigue load limit (Pu) | 400 kN |
| Mass | 70 kg |
| Limiting value (e) | 0.33 |
| Axial load factor (Y0) | 2 |
| Axial load factor (Y1) | 2 |
| Axial load factor (Y2) | 3 |
| Comparative radial load rating (CF) | 540 |
| Comparative axial load rating (CFA) | 176 |
| Thrust factor (K) | 1.73 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 331951 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
