331714 B Double row tapered roller bearings& TDI design

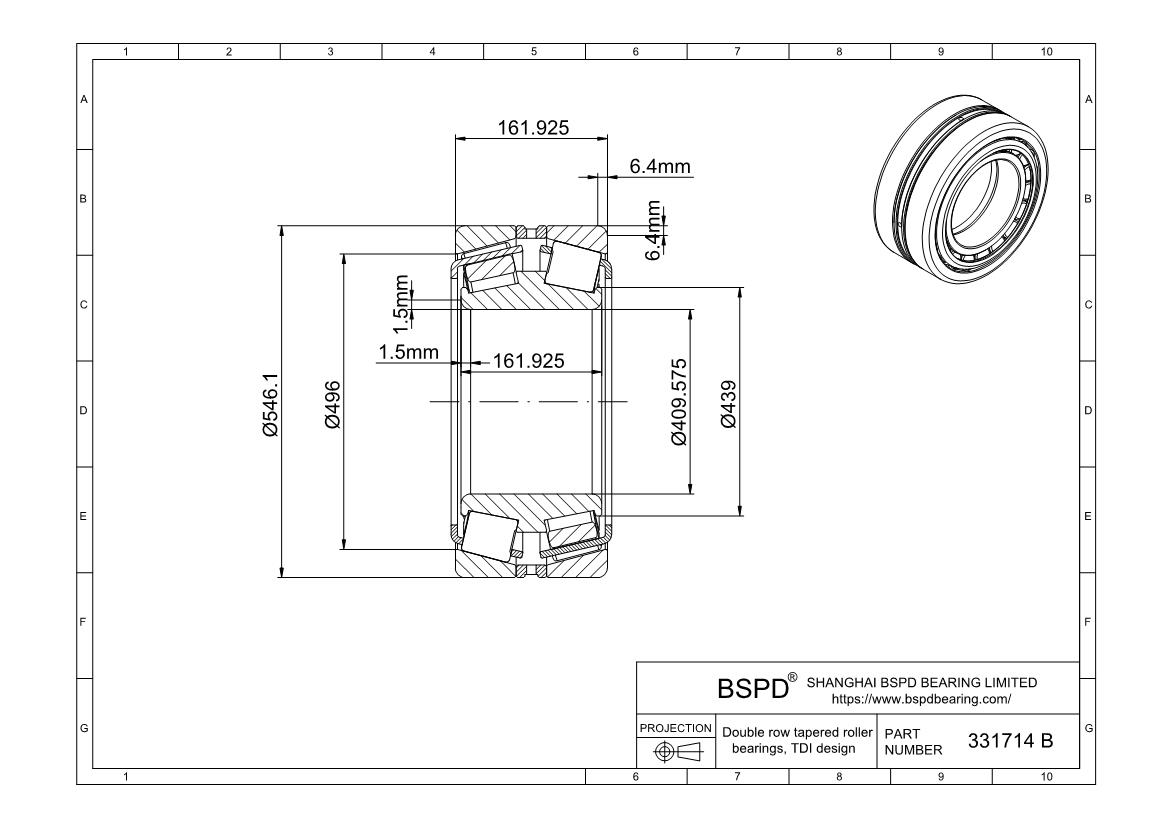

Dimensions: Bore (Inner) Diameter: 409.575 mm； Outer Diameter: 546.1 mm； Width (Thickness): 161.925 mm;

331714 B
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number331714 B
Bore diameter409.575 mm
Outside diameter546.1 mm
Total width161.925 mm
Shoulder diameter of inner ring439 mm
Width of outer ring161.925 mm
Chamfer minimum dimension of inner ring (r1,2)1.5 mm
Chamfer minimum dimension of outer ring (r3,4)6.4 mm
Basic static load rating (Cor)6550 kN
Fatigue load limit (Pu)500 kN
Mass110 kg
Limiting value (e)0.43
Axial load factor (Y0)1.6
Axial load factor (Y1)1.6
Axial load factor (Y2)2.3
Comparative radial load rating (CF)655
Comparative axial load rating (CFA)268
Thrust factor (K)1.4
331714 B
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 331714 B ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
