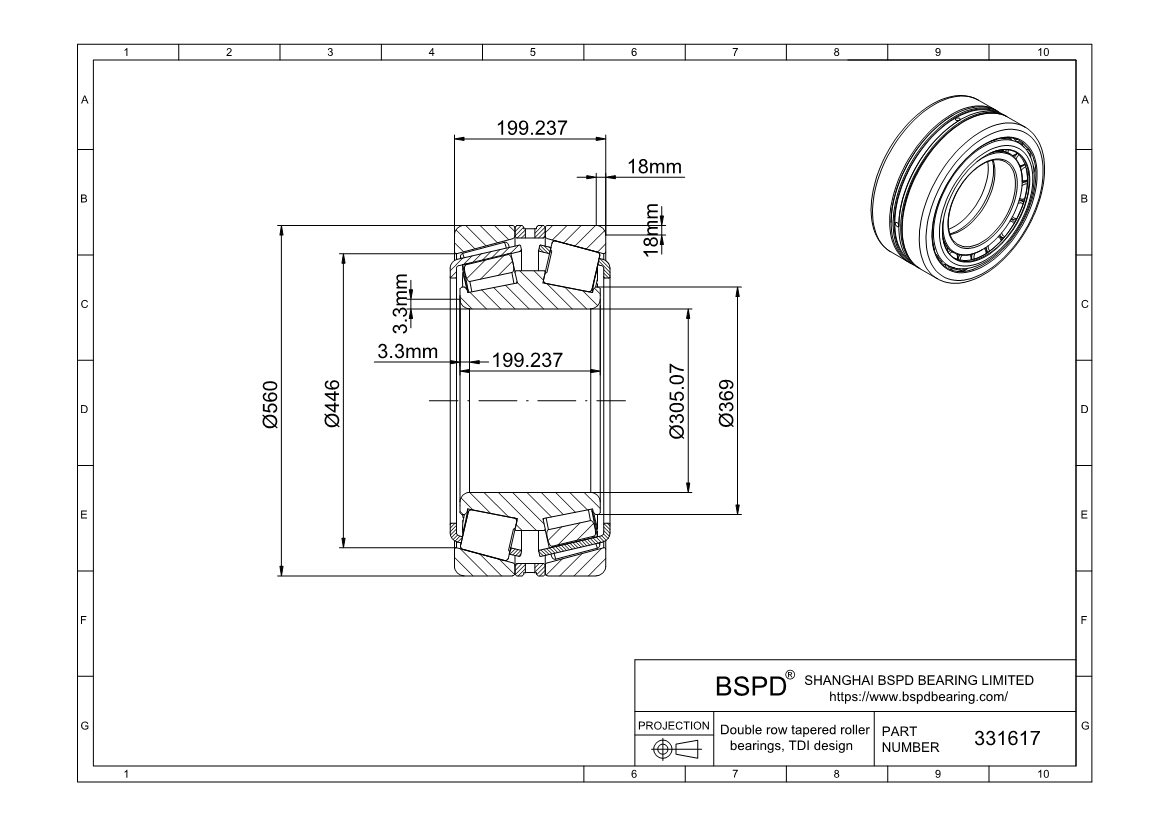

331617 Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 305.07 mm； Outer Diameter: 560 mm； Width (Thickness): 199.237 mm;

331617
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number331617
Bore diameter305.07 mm
Outside diameter560 mm
Total width199.237 mm
Shoulder diameter of inner ring369 mm
Width of outer ring199.237 mm
Chamfer minimum dimension of inner ring (r1,2)3.3 mm
Chamfer minimum dimension of outer ring (r3,4)18 mm
Basic dynamic load rating (Cr)3102 kn
Basic static load rating (Cor)5300 kN
Fatigue load limit (Pu)430 kN
Mass200 kg
Limiting value (e)0.88
Axial load factor (Y0)0.8
Axial load factor (Y1)0.77
Axial load factor (Y2)1.15
Comparative radial load rating (CF)765
Comparative axial load rating (CFA)657
Thrust factor (K)1.83
331617
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 331617 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
