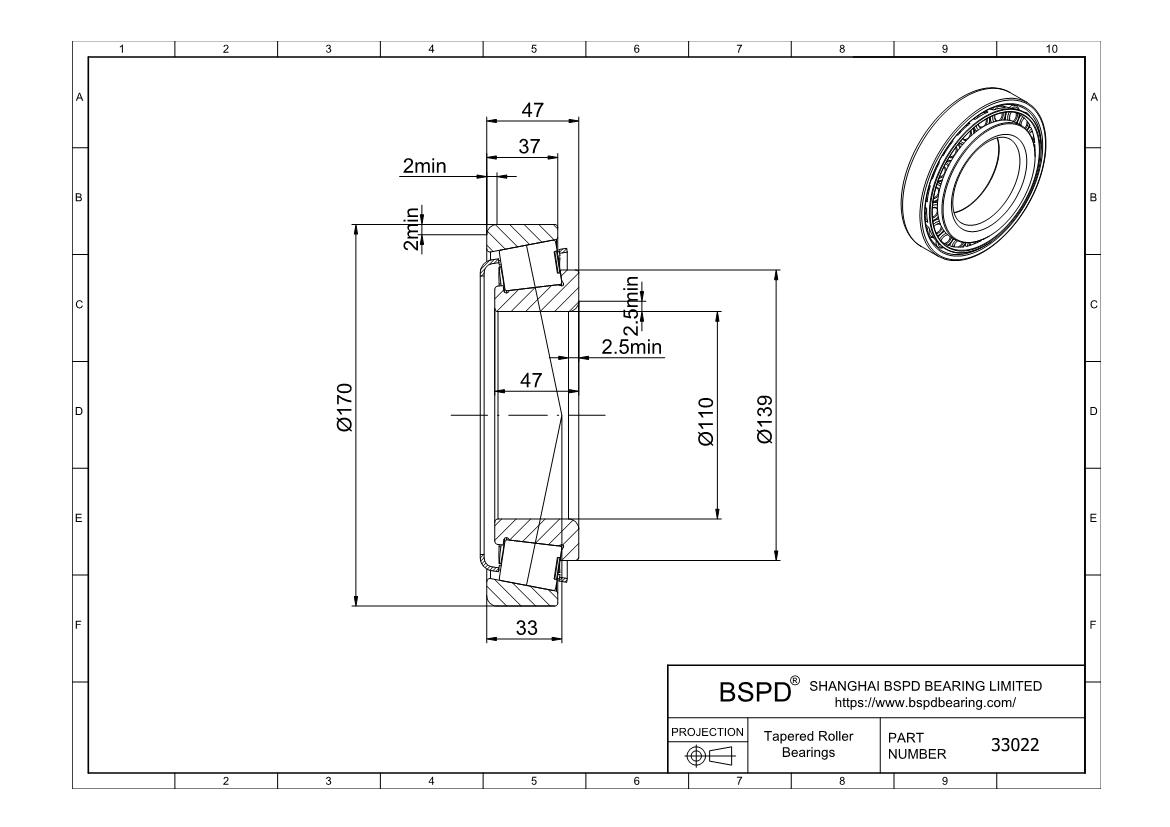

33022
Metric Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 110 mm； Outer Diameter: 170 mm； Width (Thickness): 47 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 33022 |
| Bore diameter | 110 mm |
| Outside diameter | 170 mm |
| Total width | 47 mm |
| Shoulder diameter of inner ring | 139 mm |
| Widthof inner ring | 47 mm |
| Width of outer ring | 37 mm |
| Chamfer minimum dimension of inner ring (r1,2) | 2.5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 2 mm |
| Distance side face to pressure point (a) | 33 mm |
| Basic dynamic load rating (Cr) | 343 kn |
| Basic static load rating (Cor) | 500 kN |
| Fatigue load limit (Pu) | 53 kN |
| Reference speed | 3000 r/min |
| Limiting speed | 3600 r/min |
| Mass | 3.85 kg |
| Limiting value (e) | 0.28 |
| Axial load factor (Y) | 2.1 |
| Axial load factor (Y0) | 1.1 |
| Maximum diameter of shaft abutment (da) | 123 mm |
| Minimum diameter of shaft abutment (db) | 122 mm |
| Minimum diameter of housing abutment (Da) | 152 mm |
| Maximum diameter of housing abutment (Da) | 159 mm |
| Minimum diameter of housing abutment (Db) | 161 mm |
| Minimum width of space required in housing on large side face (C | 7 mm |
| Minimum width of space required in housing on small side face (C | 10 mm |
| Maximum Radius of shaft fillet (ra) | 2.5 mm |
| Maximum Radius of housing fillet (rb) | 2 mm |
