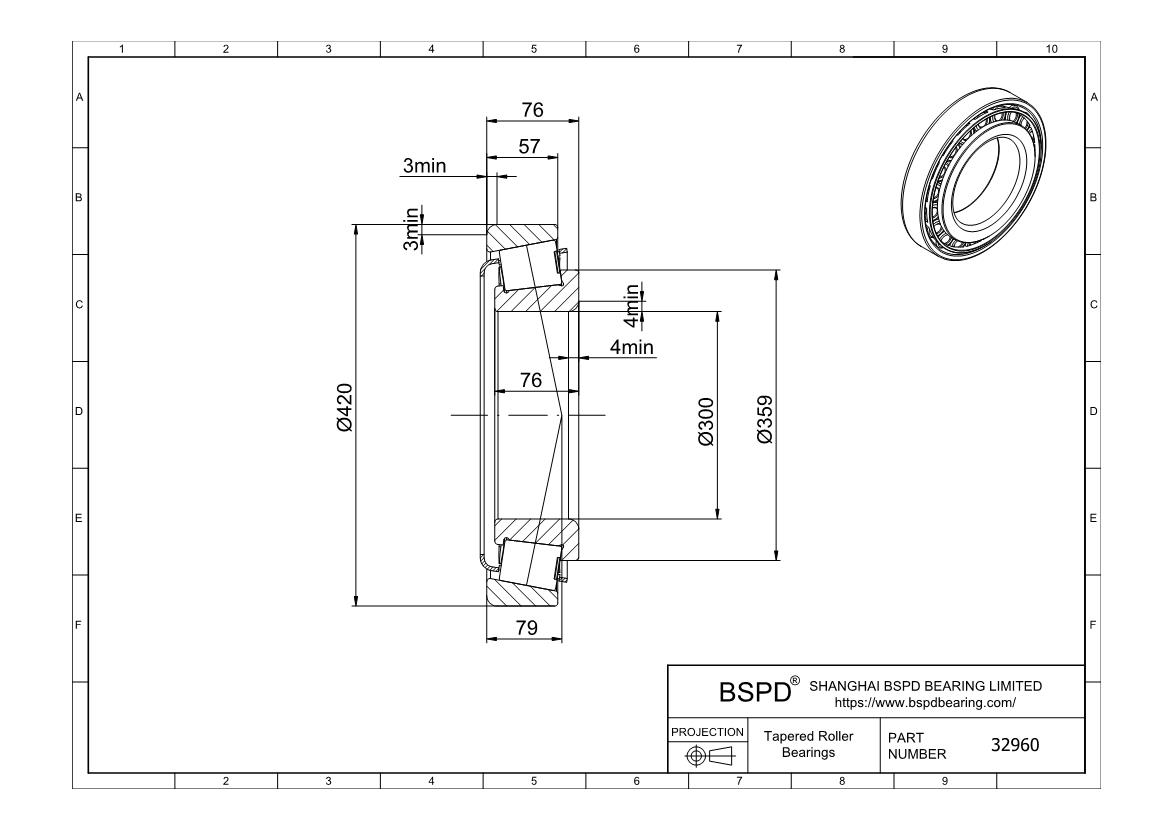

Metric Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 300 mm； Outer Diameter: 420 mm； Width (Thickness): 76 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 32960 |
| Bore diameter | 300 mm |
| Outside diameter | 420 mm |
| Total width | 76 mm |
| Shoulder diameter of inner ring | 359 mm |
| Widthof inner ring | 76 mm |
| Width of outer ring | 57 mm |
| Chamfer minimum dimension of inner ring (r1,2) | 4 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3 mm |
| Distance side face to pressure point (a) | 79 mm |
| Basic dynamic load rating (Cr) | 1126 kn |
| Basic static load rating (Cor) | 2240 kN |
| Fatigue load limit (Pu) | 186 kN |
| Reference speed | 950 r/min |
| Limiting speed | 1300 r/min |
| Mass | 31.5 kg |
| Limiting value (e) | 0.4 |
| Axial load factor (Y) | 1.5 |
| Axial load factor (Y0) | 0.8 |
| Maximum diameter of shaft abutment (da) | 325 mm |
| Minimum diameter of shaft abutment (db) | 319 mm |
| Minimum diameter of housing abutment (Da) | 383 mm |
| Maximum diameter of housing abutment (Da) | 404 mm |
| Minimum diameter of housing abutment (Db) | 405 mm |
| Minimum width of space required in housing on large side face (C | 13 mm |
| Minimum width of space required in housing on small side face (C | 19 mm |
| Maximum Radius of shaft fillet (ra) | 4 mm |
| Maximum Radius of housing fillet (rb) | 3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 32960 ? Metric Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
