32915

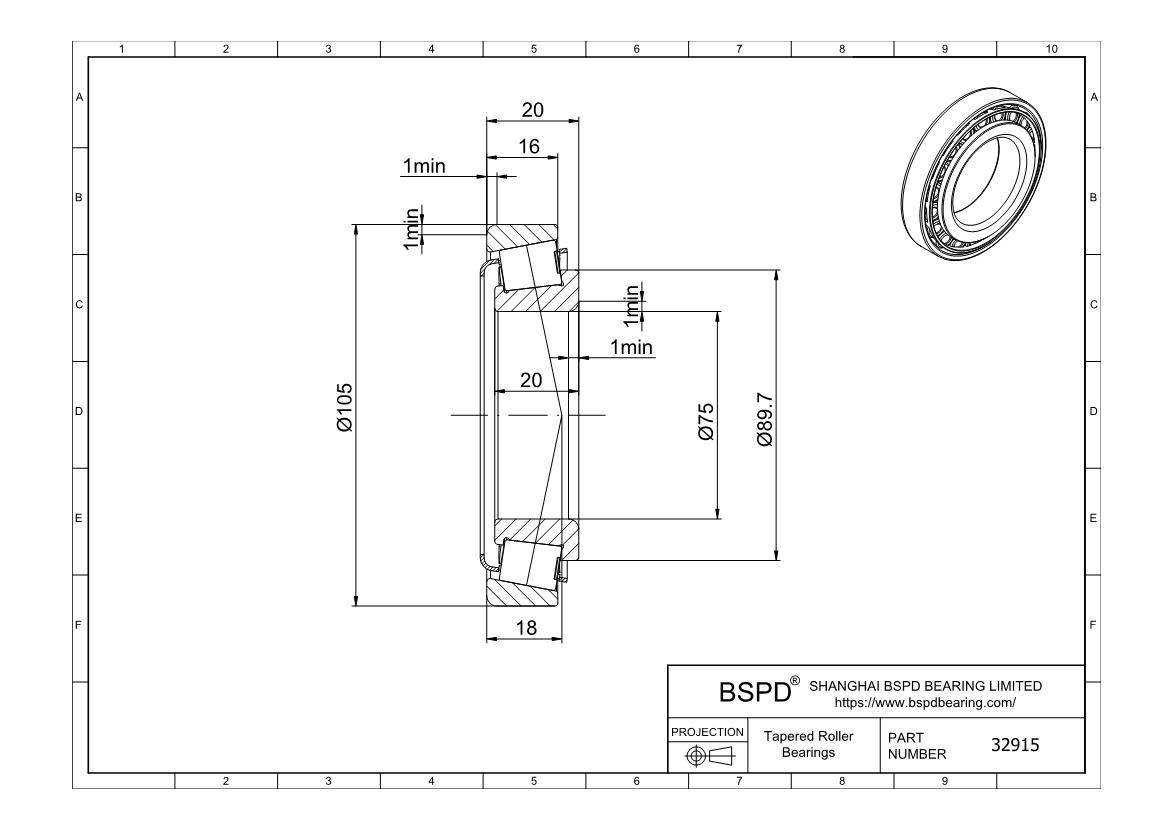

Metric Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 75 mm； Outer Diameter: 105 mm； Width (Thickness): 20 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 32915 |
| Bore diameter | 75 mm |
| Outside diameter | 105 mm |
| Total width | 20 mm |
| Shoulder diameter of inner ring | 89.7 mm |
| Widthof inner ring | 20 mm |
| Width of outer ring | 16 mm |
| Chamfer minimum dimension of inner ring (r1,2) | 1 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 1 mm |
| Distance side face to pressure point (a) | 18 mm |
| Basic dynamic load rating (Cr) | 86.8 kn |
| Basic static load rating (Cor) | 116 kN |
| Fatigue load limit (Pu) | 13.2 kN |
| Reference speed | 4800 r/min |
| Limiting speed | 5600 r/min |
| Mass | 0.51 kg |
| Limiting value (e) | 0.33 |
| Axial load factor (Y) | 1.8 |
| Axial load factor (Y0) | 1 |
| Maximum diameter of shaft abutment (da) | 82 mm |
| Minimum diameter of shaft abutment (db) | 83.5 mm |
| Minimum diameter of housing abutment (Da) | 98 mm |
| Maximum diameter of housing abutment (Da) | 97 mm |
| Minimum diameter of housing abutment (Db) | 101 mm |
| Minimum width of space required in housing on large side face (C | 4 mm |
| Minimum width of space required in housing on small side face (C | 4 mm |
| Maximum Radius of shaft fillet (ra) | 1 mm |
| Maximum Radius of housing fillet (rb) | 1 mm |
