32912

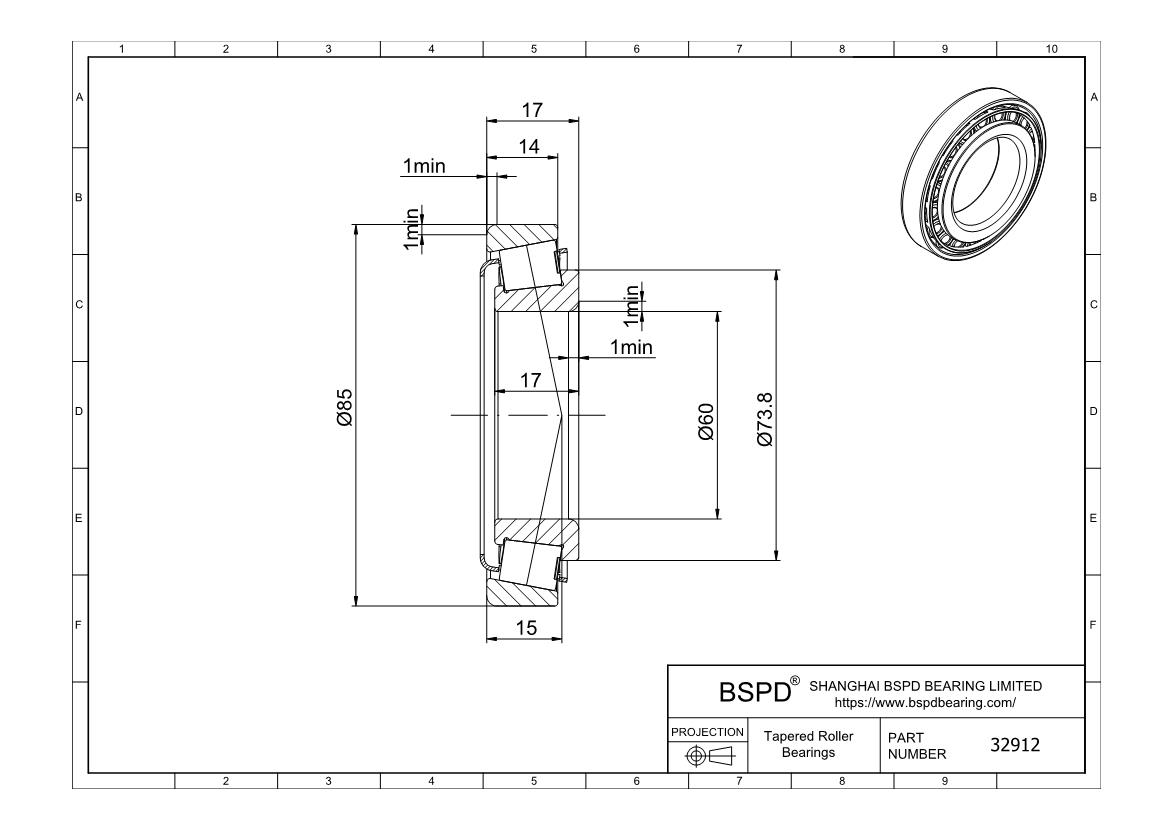

Metric Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 60 mm； Outer Diameter: 85 mm； Width (Thickness): 17 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 32912 |
| Bore diameter | 60 mm |
| Outside diameter | 85 mm |
| Total width | 17 mm |
| Widthof inner ring | 17 mm |
| Width of outer ring | 14 mm |
| Chamfer minimum dimension of inner ring (r1,2) | 1 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 1 mm |
| Distance side face to pressure point (a) | 15 mm |
| Basic dynamic load rating (Cr) | 53.2 kn |
| Basic static load rating (Cor) | 75 kN |
| Fatigue load limit (Pu) | 7.8 kN |
| Reference speed | 6000 r/min |
| Limiting speed | 7000 r/min |
| Mass | 0.3 kg |
| Limiting value (e) | 0.33 |
| Axial load factor (Y) | 1.8 |
| Axial load factor (Y0) | 1 |
| Maximum diameter of shaft abutment (da) | 67 mm |
| Minimum diameter of shaft abutment (db) | 68 mm |
| Minimum diameter of housing abutment (Da) | 78 mm |
| Maximum diameter of housing abutment (Da) | 78 mm |
| Minimum diameter of housing abutment (Db) | 81 mm |
| Minimum width of space required in housing on large side face (C | 3 mm |
| Minimum width of space required in housing on small side face (C | 3 mm |
| Maximum Radius of shaft fillet (ra) | 1 mm |
| Maximum Radius of housing fillet (rb) | 1 mm |
