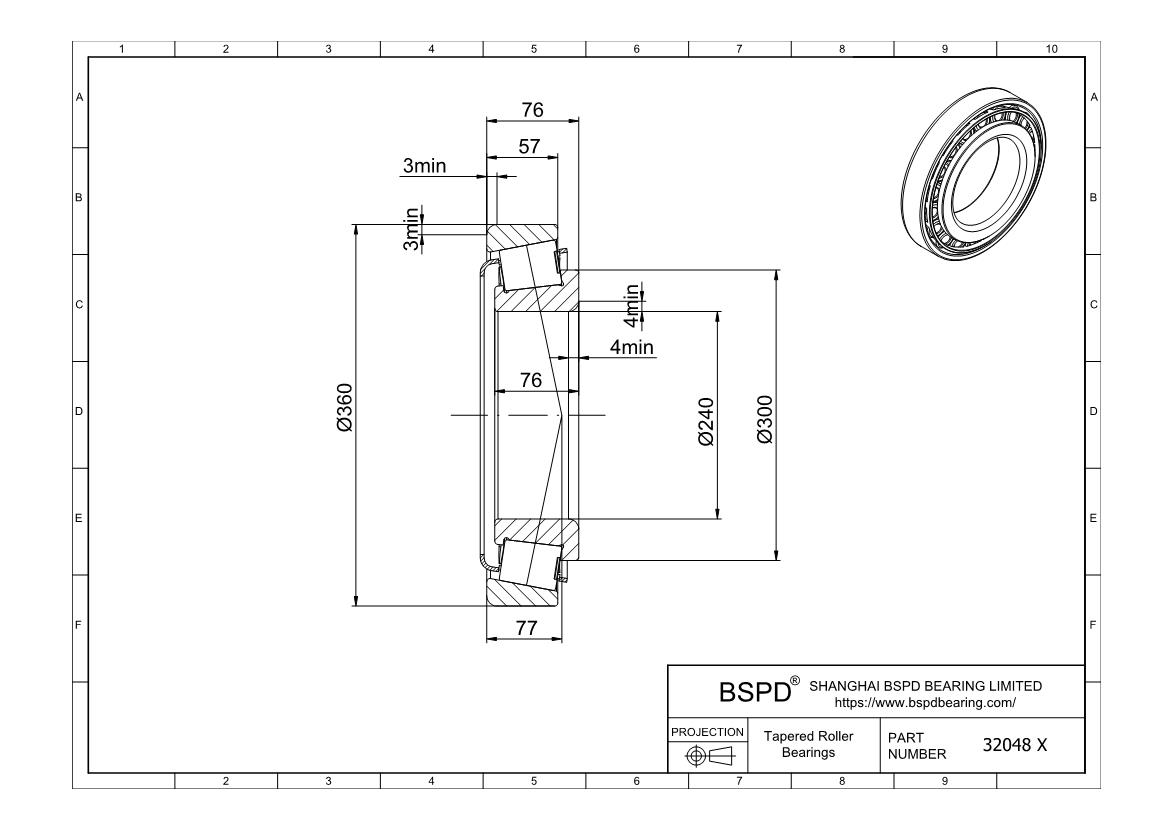

32048 X
Metric Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 240 mm； Outer Diameter: 360 mm； Width (Thickness): 76 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 32048 X |
| Bore diameter | 240 mm |
| Outside diameter | 360 mm |
| Total width | 76 mm |
| Shoulder diameter of inner ring | 300 mm |
| Widthof inner ring | 76 mm |
| Width of outer ring | 57 mm |
| Chamfer minimum dimension of inner ring (r1,2) | 4 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3 mm |
| Distance side face to pressure point (a) | 77 mm |
| Basic dynamic load rating (Cr) | 989 kn |
| Basic static load rating (Cor) | 1800 kN |
| Fatigue load limit (Pu) | 156 kN |
| Reference speed | 1200 r/min |
| Limiting speed | 1600 r/min |
| Mass | 26.5 kg |
| Limiting value (e) | 0.46 |
| Axial load factor (Y) | 1.3 |
| Axial load factor (Y0) | 0.7 |
| Maximum diameter of shaft abutment (da) | 262 mm |
| Minimum diameter of shaft abutment (db) | 258 mm |
| Minimum diameter of housing abutment (Da) | 318 mm |
| Maximum diameter of housing abutment (Da) | 345 mm |
| Minimum diameter of housing abutment (Db) | 346 mm |
| Minimum width of space required in housing on large side face (C | 12 mm |
| Minimum width of space required in housing on small side face (C | 19 mm |
| Maximum Radius of shaft fillet (ra) | 4 mm |
| Maximum Radius of housing fillet (rb) | 3 mm |
