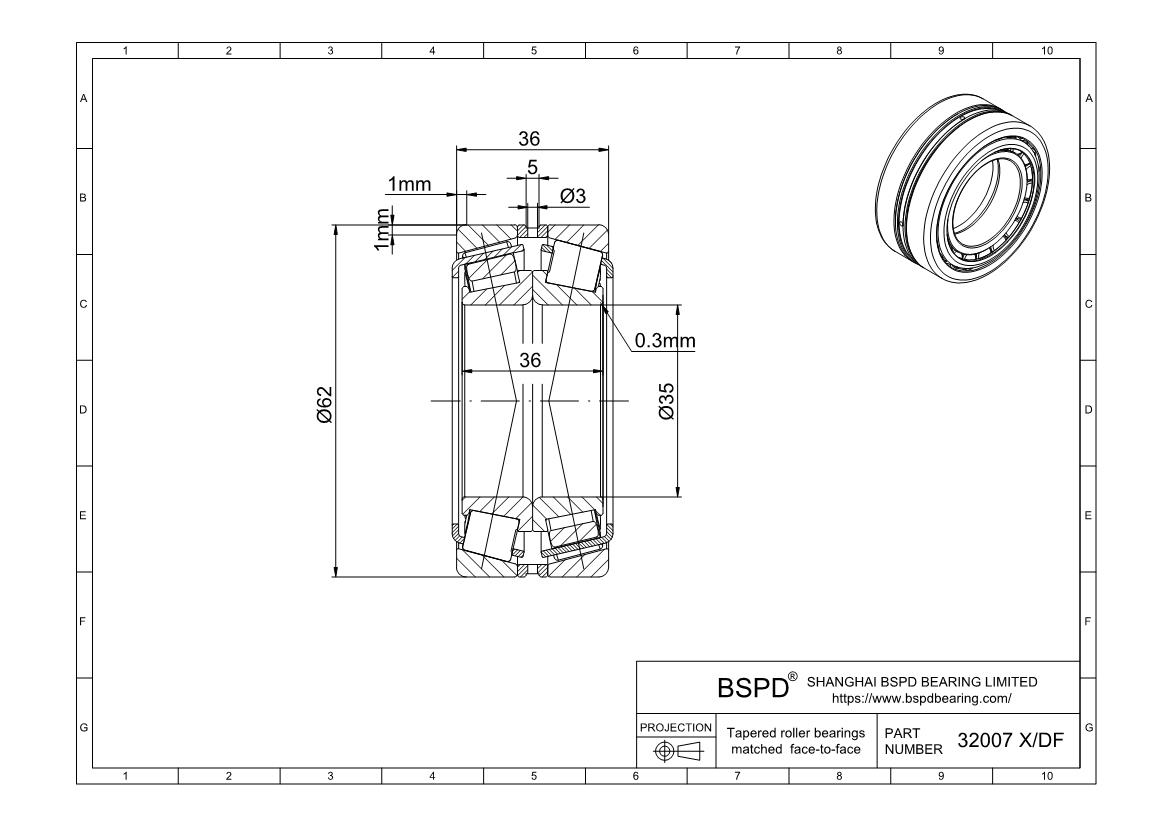

32007 X/DF
Tapered roller bearings& single row& matched face-to-face
Dimensions: Bore (Inner) Diameter: 35 mm； Outer Diameter: 62 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 32007 X/DF |
| Bore diameter | 35 mm |
| Outside diameter | 62 mm |
| Shoulder diameter of inner ring | 36 mm |
| Widthof inner ring | 36 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 0.3 mm |
| Basic dynamic load rating (Cr) | 89.7 kn |
| Basic static load rating (Cor) | 108 kN |
| Fatigue load limit (Pu) | 11.6 kN |
| Reference speed | 7000 r/min |
| Limiting speed | 10000 r/min |
| Mass | 0.46 kg |
| Limiting value (e) | 0.46 |
| Axial load factor (Y) | 1.5 |
| Axial load factor (Y0) | 2.2 |
| Maximum diameter of shaft abutment (da) | 41 mm |
| Minimum diameter of housing abutment (Da) | 54 mm |
| Maximum diameter of housing abutment (Da) | 56 mm |
| Minimum width of space required in housing on large side face (C | 4 mm |
| Maximum Radius of shaft fillet (ra) | 0.3 mm |
| Maximum Radius of housing fillet (rb) | 1 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 32007 X/DF ? Tapered roller bearings& single row& matched face-to-face Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
