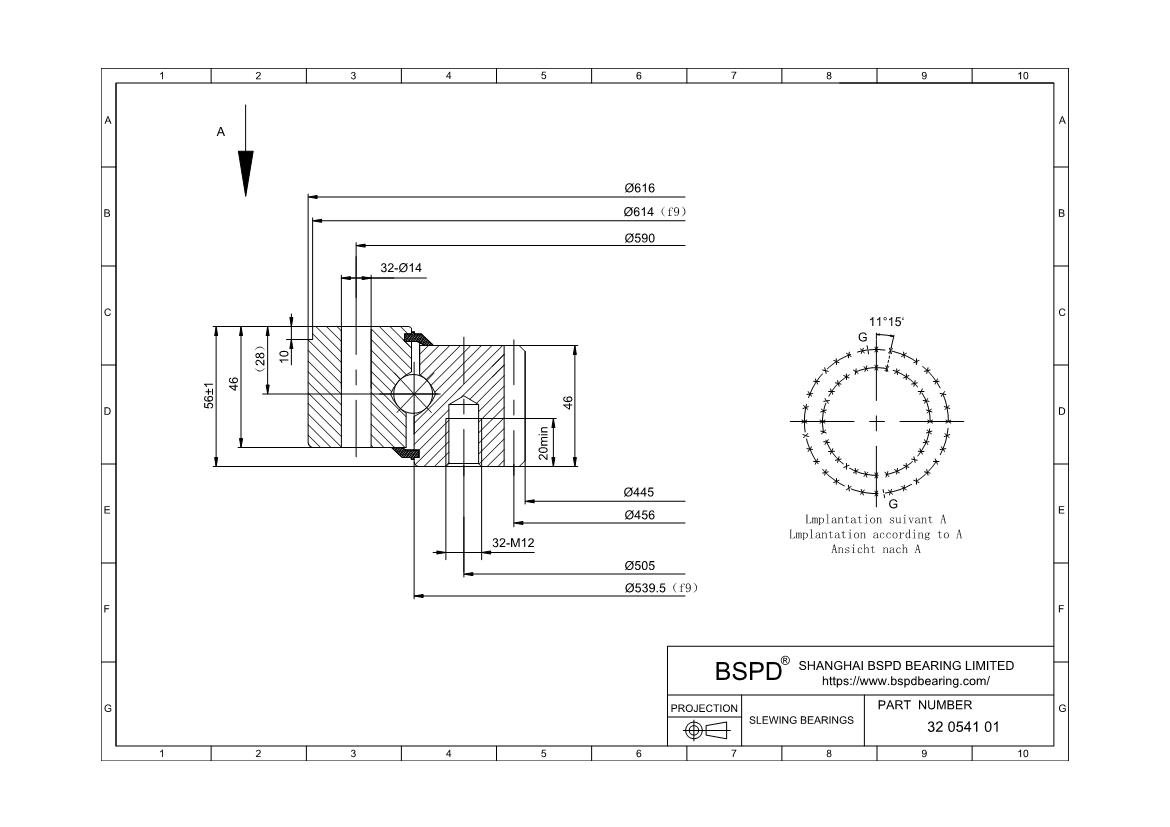

32 0541 01
Metric Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 445.0 mm； Outer Diameter: 616.0 mm； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 32 0541 01 |
| Gear | Internal gear |
| Geometry | |
| External Diameter (DR) | 616 |
| Internal Diameter (di) | 445 |
| Height(H) | 56 |
| Weight(kg) | 43 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 456 |
| Module(m) | 6 |
| Number of teeth(z) | 76 |
| Pressure Angle of Gear Teeth (α) | 20 |
| Tooth Form | Droite |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 590 |
| Number Holes in Outer Ring (no) | 32 |
| Bolt Circle in Inner Ring (Li) | 505 |
| Number Holes in Inner Ring (ni) | 32 |
| MEASUREMENTS IN MILLIMETERS | |
| MAXIMUM DEFLECTION | |
| MAXIMUM MEASUREMENT IN 1 POINT | |
Print PDF
Request a 3D CAD Model
