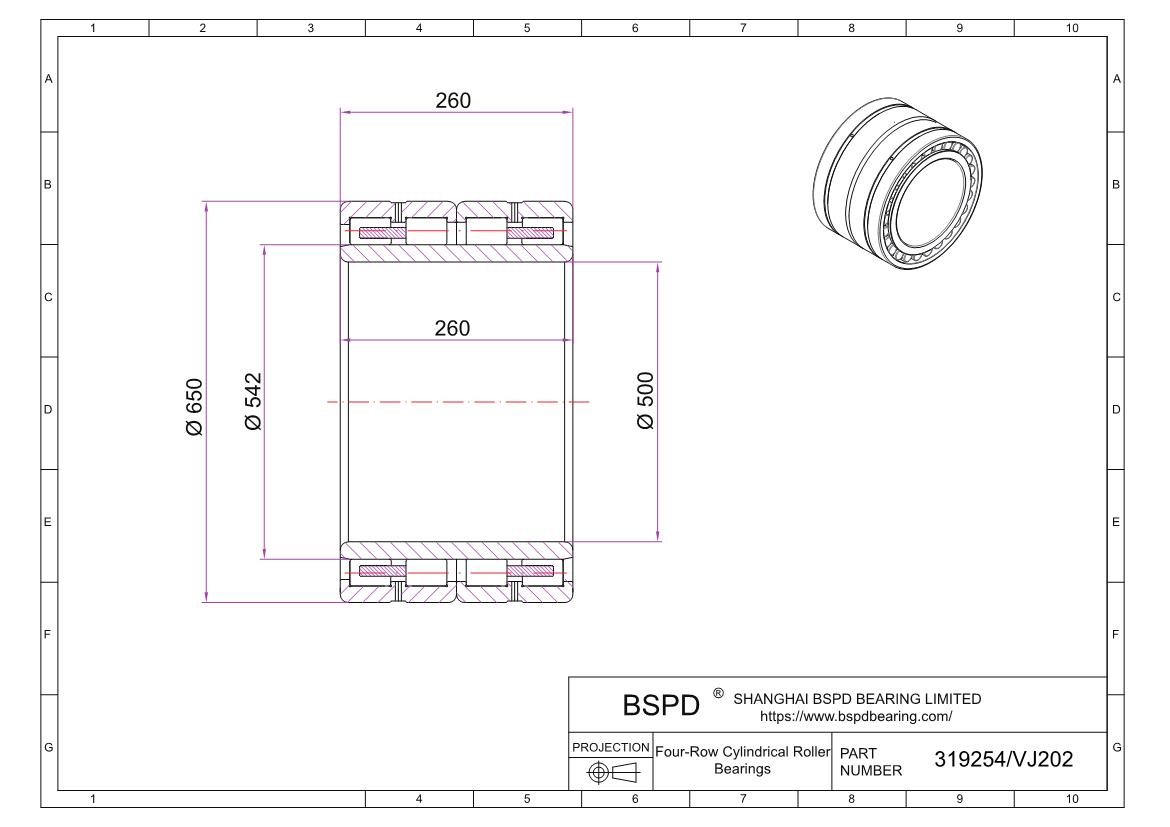

319254/VJ202 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 500 mm； Outer Diameter: 650 mm； Width (Thickness): ;

319254/VJ202
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number319254/VJ202
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia500 mm
Outer Dia650 mm
Total Bearing Width Over Inner Ring(S)(B)260 mm
Total Bearing Width Over Outer Ring(S)(C)260 mm
Dynamic Radial Load4400 kN
Static Radial Load10200 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)5 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)5 mm
Dynamic Load Rating4400 kN
Static Load Rating10200 kN
Fatigue Load Limit(Pu)850 kN
Static Load Rating 10000 kN greater
Calculation Factor(Kr)310
Mass Bearing225 kg
Raceway Diameter Inner Ring(F)542 mm
Design Variant/FeatureBC4.7/WO
Outer Ring Shoulder Diameter(D1)599.6 mm
319254/VJ202
