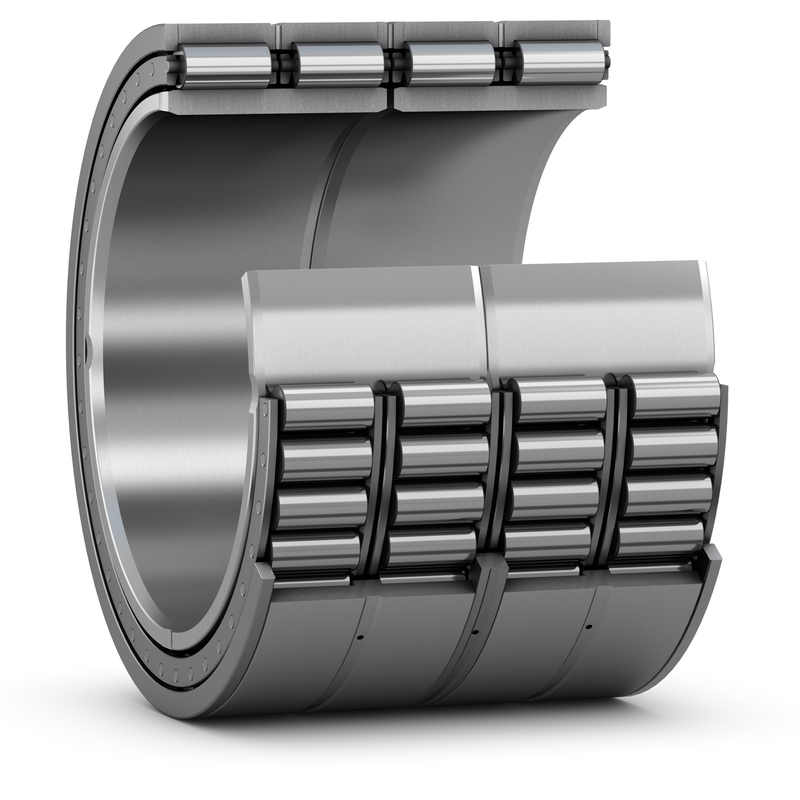

316691 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 550 mm； Outer Diameter: 740 mm； Width (Thickness): ;

316691
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number316691
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia550 mm
Outer Dia740 mm
Total Bearing Width Over Inner Ring(S)(B)510 mm
Total Bearing Width Over Outer Ring(S)(C)510 mm
Dynamic Radial Load11000 kN
Static Radial Load27000 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)15 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)2 mm
Dynamic Load Rating11000 kN
Static Load Rating27000 kN
Fatigue Load Limit(Pu)2160 kN
Static Load Rating 10000 kN greater
Mass Bearing630 kg
Raceway Diameter Inner Ring(F)600 mm
Design Variant/FeatureBC4.10/W33WI
Width of Annular Groove(B)22.3 mm
Chamfer Angle Inner Ring(α)20 °
Diameter Lubrication Hole(Outer Ring)(K)12 mm
316691
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
