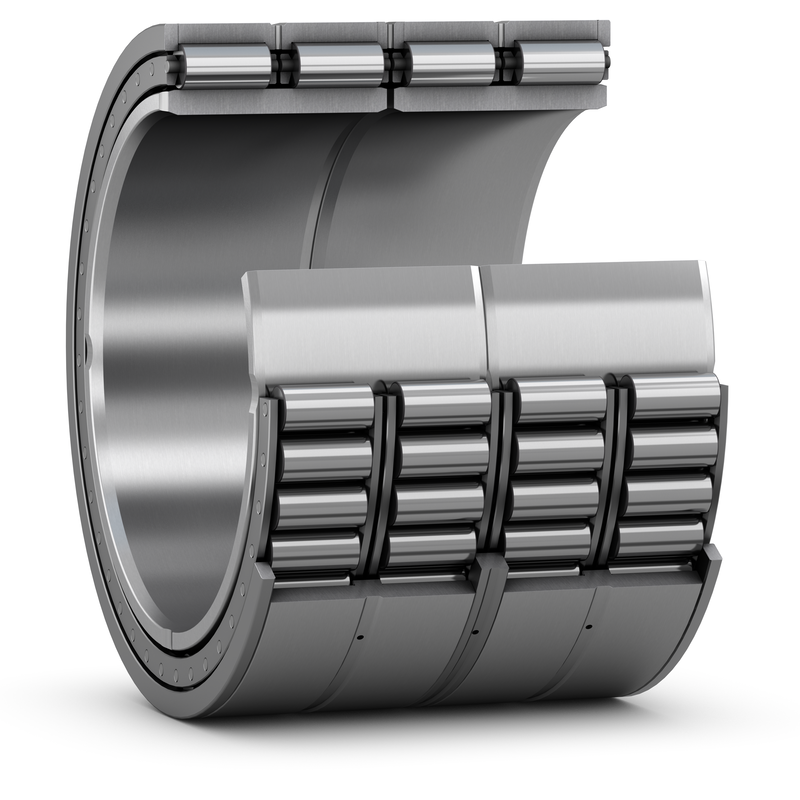

316083 A Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 500 mm； Outer Diameter: 670 mm； Width (Thickness): ;

316083 A
Product Attributes
Product Number316083 A
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia500 mm
Outer Dia670 mm
Total Bearing Width Over Inner Ring(S)(B)450 mm
Total Bearing Width Over Outer Ring(S)(C)450 mm
Dynamic Radial Load8250 kN
Static Radial Load22000 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)12.5 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)5 mm
Dynamic Load Rating8250 kN
Static Load Rating22000 kN
Fatigue Load Limit(Pu)1800 kN
Static Load Rating 10000 kN greater
Calculation Factor(Kr)640
Mass Bearing460 kg
Raceway Diameter Inner Ring(F)540 mm
Design Variant/FeatureBC4.10/W33GWI
Width of Annular Groove(B)16.7 mm
Chamfer Angle Inner Ring(α)20 °
Diameter Lubrication Hole(Outer Ring)(K)9 mm
