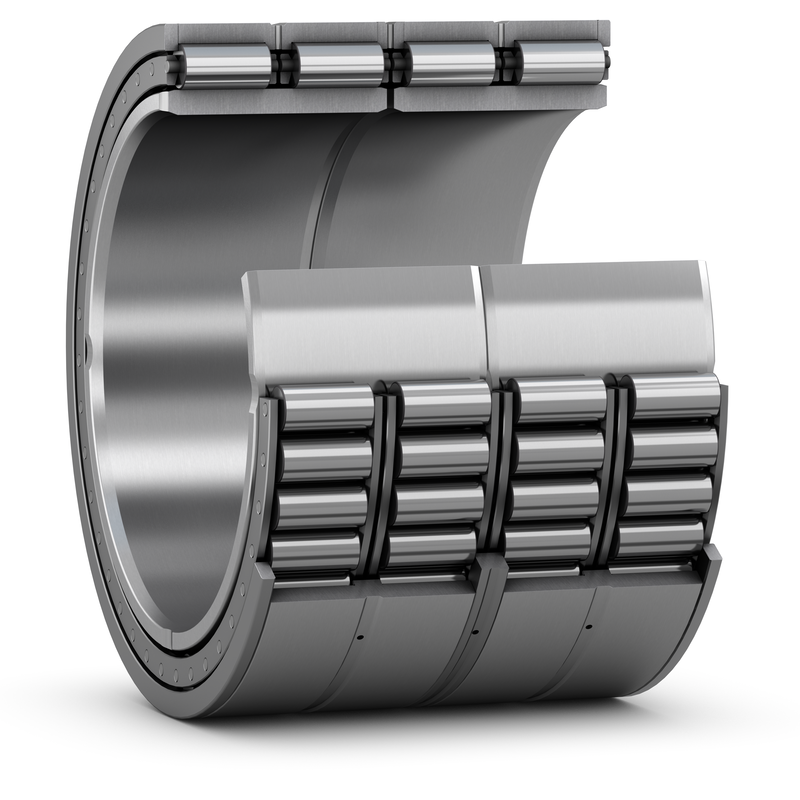

315826 B Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 850 mm； Outer Diameter: 1150 mm； Width (Thickness): ;

315826 B
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number315826 B
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia850 mm
Outer Dia1150 mm
Total Bearing Width Over Inner Ring(S)(B)840 mm
Total Bearing Width Over Outer Ring(S)(C)840 mm
Dynamic Radial Load27500 kN
Static Radial Load75000 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)23 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)4 mm
Dynamic Load Rating27500 kN
Static Load Rating75000 kN
Fatigue Load Limit(Pu)4800 kN
Static Load Rating 10000 kN greater
Calculation Factor(Kr)740
Mass Bearing2570 kg
Raceway Diameter Inner Ring(F)928 mm
Design Variant/FeatureBC4.10/W33WI
Width of Annular Groove(B)22.3 mm
Chamfer Angle Inner Ring(α)20 °
Outer Ring Shoulder Diameter(D1)1063.2 mm
Diameter Lubrication Hole(Outer Ring)(K)12 mm
315826 B
