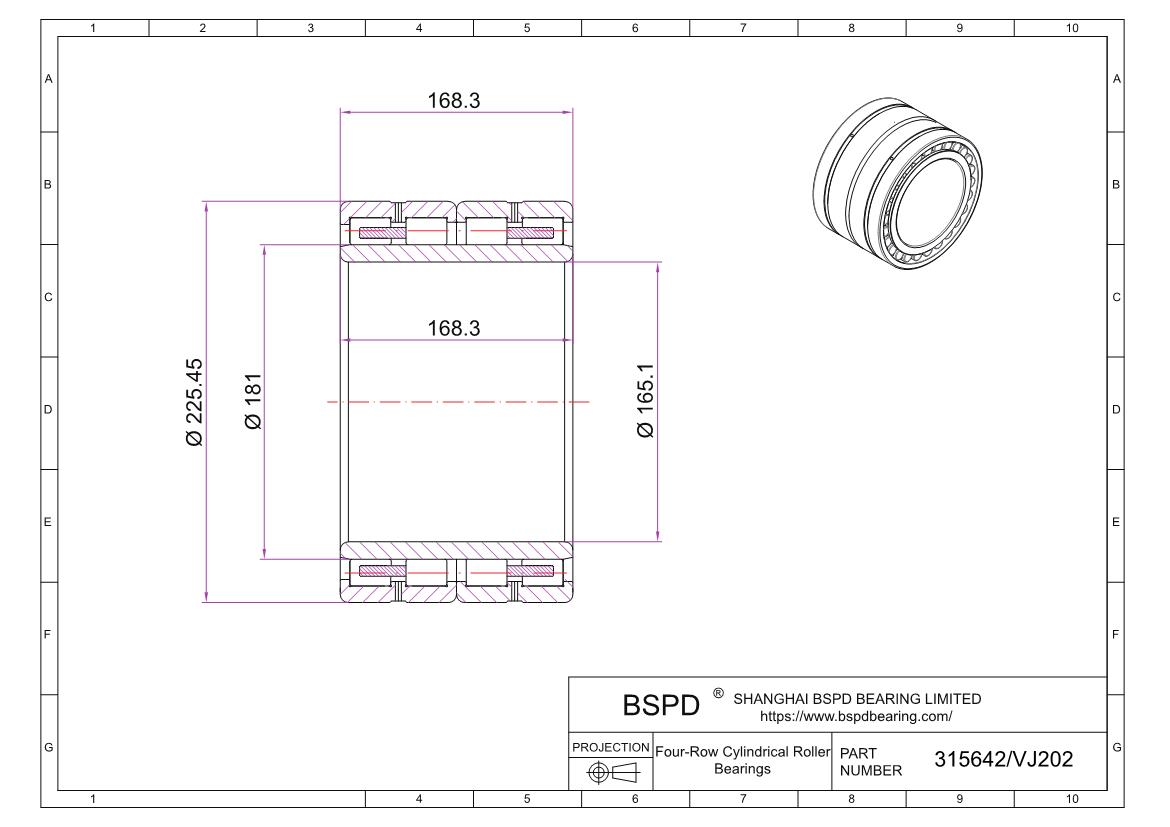

315642/VJ202 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 165.1 mm； Outer Diameter: 225.45 mm； Width (Thickness): ;

315642/VJ202
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number315642/VJ202
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia165.1 mm
Outer Dia225.45 mm
Total Bearing Width Over Inner Ring(S)(B)168.3 mm
Total Bearing Width Over Outer Ring(S)(C)168.3 mm
Dynamic Radial Load1100 kN
Static Radial Load2240 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)1.5 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)1.5 mm
Dynamic Load Rating1100 kN
Static Load Rating2240 kN
Fatigue Load Limit(Pu)240 kN
Static Load Rating 2000~3000 kN
Mass Bearing19.8 kg
Raceway Diameter Inner Ring(F)181 mm
Design Variant/FeatureBC4.7/WO
Outer Ring Shoulder Diameter(D1)205 mm
Permissible Axial Displacement(S)1.2 mm
315642/VJ202
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
