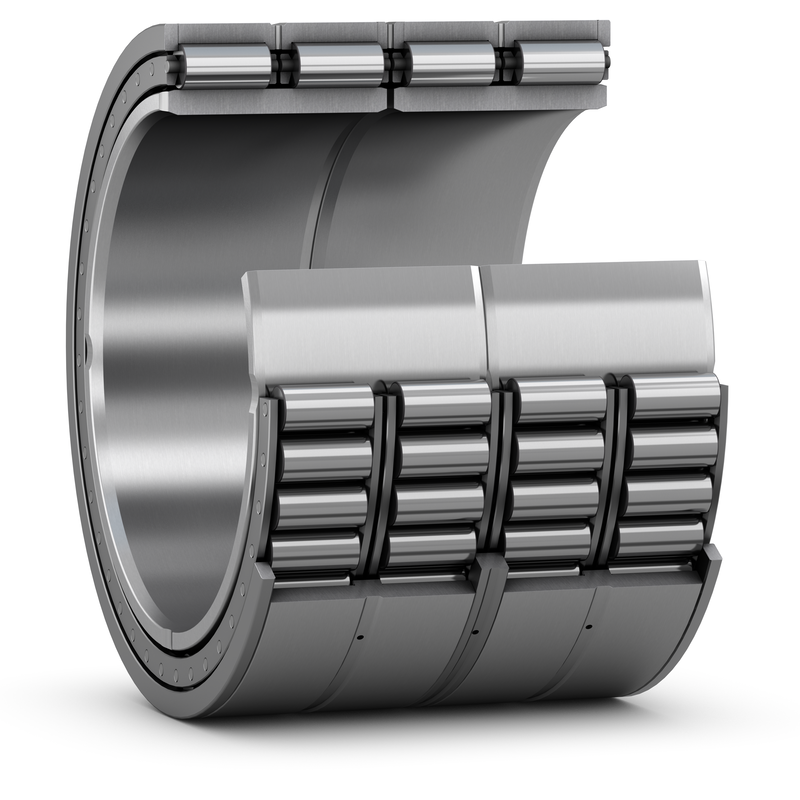

315196 A Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 460 mm； Outer Diameter: 650 mm； Width (Thickness): ;

315196 A
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number315196 A
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia460 mm
Outer Dia650 mm
Total Bearing Width Over Inner Ring(S)(B)424 mm
Total Bearing Width Over Outer Ring(S)(C)424 mm
Dynamic Radial Load8250 kN
Static Radial Load18300 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)12 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)3 mm
Dynamic Load Rating8250 kN
Static Load Rating18300 kN
Fatigue Load Limit(Pu)1530 kN
Static Load Rating 10000 kN greater
Calculation Factor(Kr)530
Mass Bearing454 kg
Raceway Diameter Inner Ring(F)510 mm
Design Variant/FeatureBC4.10/W33WI
Width of Annular Groove(B)16.7 mm
Chamfer Angle Inner Ring(α)20 °
Diameter Lubrication Hole(Outer Ring)(K)9 mm
315196 A
