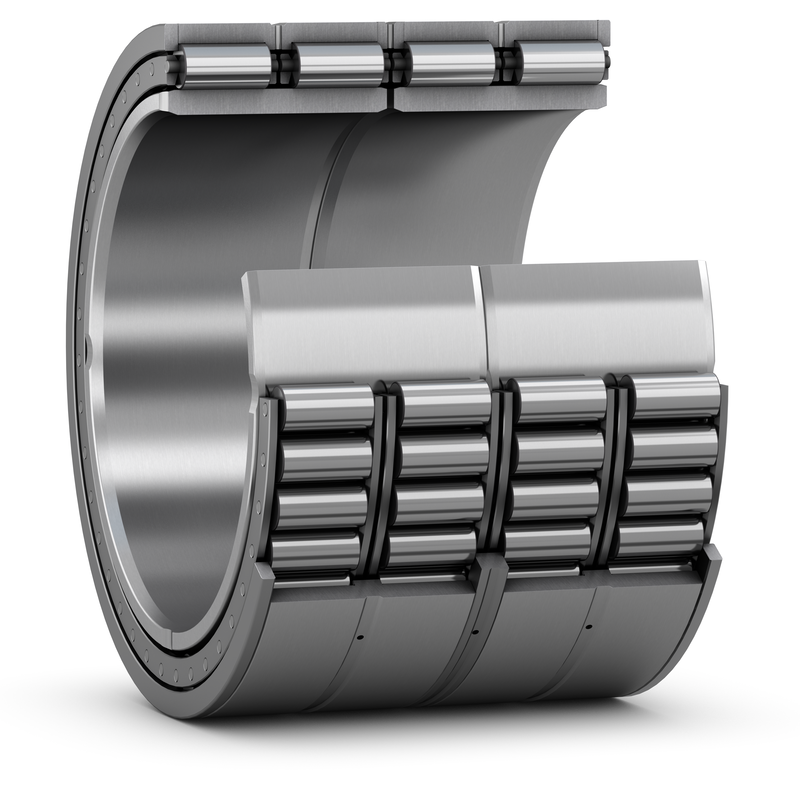

315175 C Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 600 mm； Outer Diameter: 820 mm； Width (Thickness): ;

315175 C
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number315175 C
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia600 mm
Outer Dia820 mm
Total Bearing Width Over Inner Ring(S)(B)575 mm
Total Bearing Width Over Outer Ring(S)(C)575 mm
Dynamic Radial Load14000 kN
Static Radial Load36000 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)15 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)3 mm
Dynamic Load Rating14000 kN
Static Load Rating36000 kN
Fatigue Load Limit(Pu)2550 kN
Static Load Rating 10000 kN greater
Calculation Factor(Kr)700
Mass Bearing962 kg
Raceway Diameter Inner Ring(F)660 mm
Design Variant/FeatureBC4.10/W33GWI
Width of Annular Groove(B)16.7 mm
Chamfer Angle Inner Ring(α)20 °
Diameter Lubrication Hole(Outer Ring)(K)9 mm
315175 C
