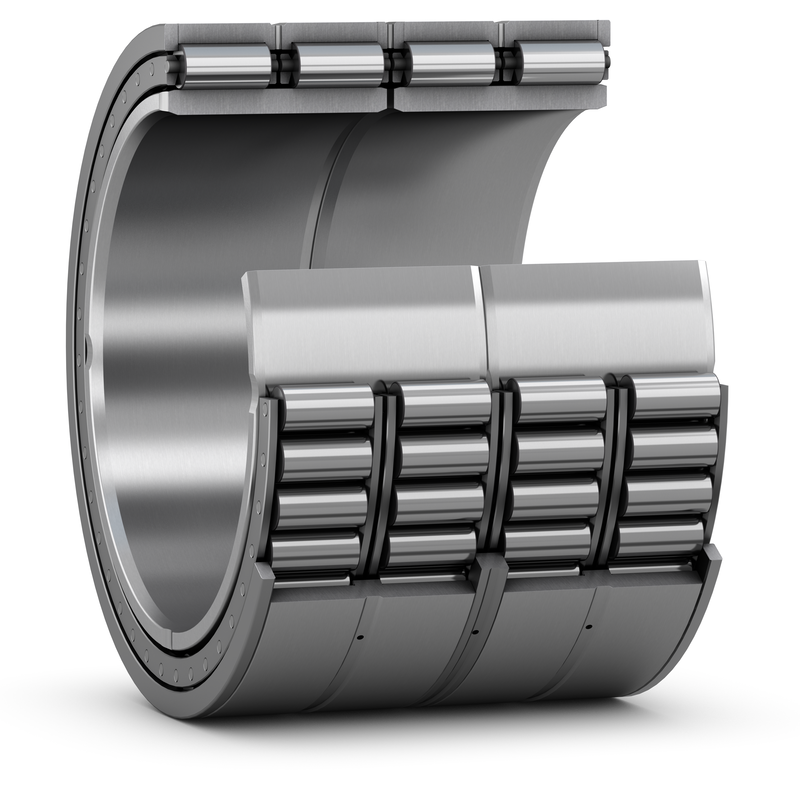

313685 B Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 759 mm； Outer Diameter: 1210 mm； Width (Thickness): ;

313685 B
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number313685 B
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia759 mm
Outer Dia1210 mm
Total Bearing Width Over Inner Ring(S)(B)740 mm
Total Bearing Width Over Outer Ring(S)(C)740 mm
Dynamic Radial Load25500 kN
Static Radial Load85000 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)4 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)4 mm
Dynamic Load Rating25500 kN
Static Load Rating85000 kN
Fatigue Load Limit(Pu)3800 kN
Static Load Rating 10000 kN greater
Calculation Factor(Kr)640
Mass Bearing3480 kg
Raceway Diameter Inner Ring(F)885 mm
Design Variant/FeatureBC4.10/W33WI
Width of Annular Groove(B)22.3 mm
Outer Ring Shoulder Diameter(D1)1053.6 mm
Diameter Lubrication Hole(Outer Ring)(K)12 mm
