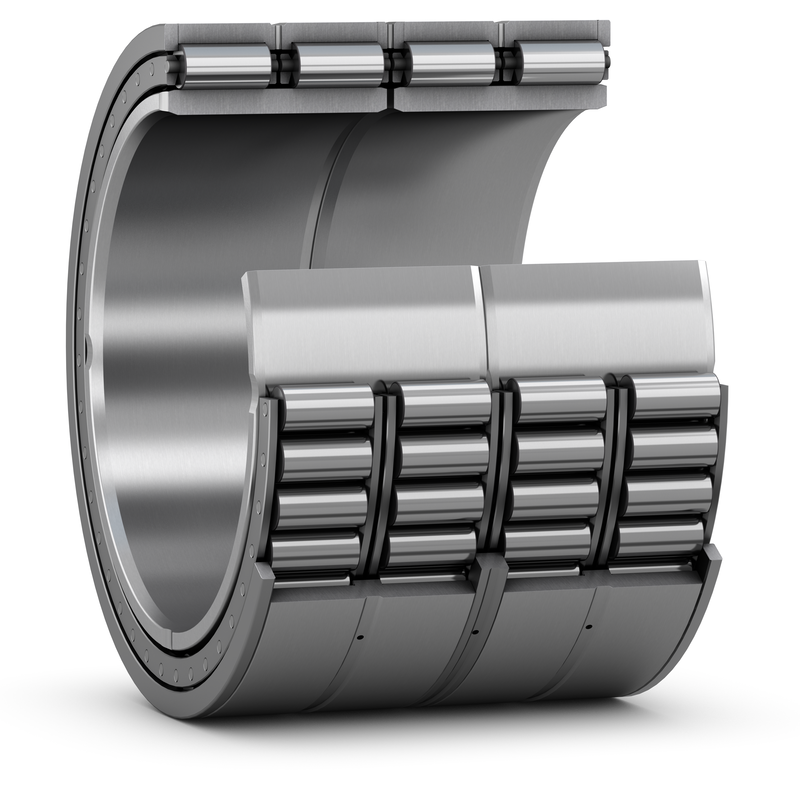

313535 D Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 536.176 mm； Outer Diameter: 762.03 mm； Width (Thickness): ;

313535 D
Product Attributes
Product Number313535 D
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia536.176 mm
Outer Dia762.03 mm
Total Bearing Width Over Inner Ring(S)(B)558.8 mm
Total Bearing Width Over Outer Ring(S)(C)558.8 mm
Dynamic Radial Load11400 kN
Static Radial Load29000 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)16 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)4 mm
Dynamic Load Rating11400 kN
Static Load Rating29000 kN
Fatigue Load Limit(Pu)2160 kN
Static Load Rating 10000 kN greater
Calculation Factor(Kr)680
Mass Bearing840 kg
Raceway Diameter Inner Ring(F)598 mm
Design Variant/FeatureBC4.10/W33GWI
Width of Annular Groove(B)16.7 mm
Chamfer Angle Inner Ring(α)20 °
Outer Ring Shoulder Diameter(D1)690.7 mm
Diameter Lubrication Hole(Outer Ring)(K)9 mm
