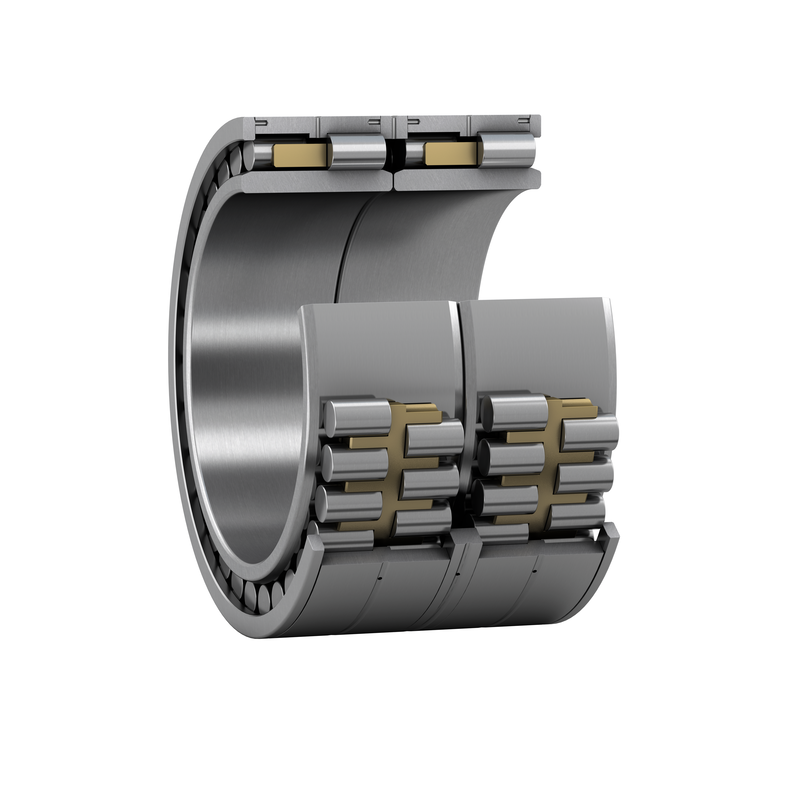

313513 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 420 mm； Outer Diameter: 600 mm； Width (Thickness): ;

313513
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number313513
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia420 mm
Outer Dia600 mm
Total Bearing Width Over Inner Ring(S)(B)440 mm
Total Bearing Width Over Outer Ring(S)(C)440 mm
Dynamic Radial Load7210 kN
Static Radial Load17600 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)8 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)2 mm
Dynamic Load Rating7210 kN
Static Load Rating17600 kN
Fatigue Load Limit(Pu)1460 kN
Static Load Rating 10000 kN greater
Calculation Factor(Kr)660
Mass Bearing400 kg
Raceway Diameter Inner Ring(F)470 mm
Design Variant/FeatureBC4.8/W33WI
Width of Annular Groove(B)16.7 mm
Chamfer Angle Inner Ring(α)20 °
Diameter Lubrication Hole(Outer Ring)(K)9 mm
313513
