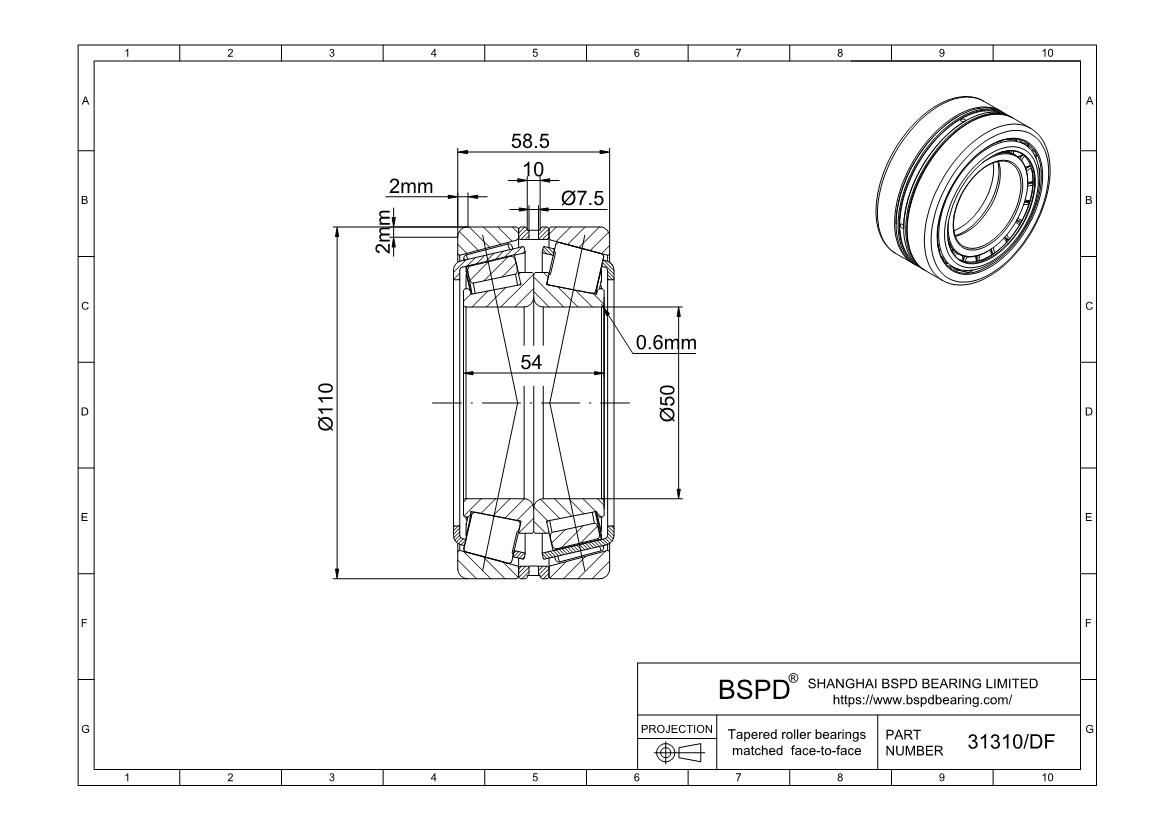

31310/DF
Tapered roller bearings& single row& matched face-to-face
Dimensions: Bore (Inner) Diameter: 50 mm； Outer Diameter: 110 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 31310/DF |
| Bore diameter | 50 mm |
| Outside diameter | 110 mm |
| Shoulder diameter of inner ring | 58.5 mm |
| Widthof inner ring | 54 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 0.6 mm |
| Basic dynamic load rating (Cr) | 224 kn |
| Basic static load rating (Cor) | 240 kN |
| Fatigue load limit (Pu) | 28.5 kN |
| Reference speed | 3600 r/min |
| Limiting speed | 6000 r/min |
| Mass | 2.55 kg |
| Limiting value (e) | 0.83 |
| Axial load factor (Y) | 0.81 |
| Axial load factor (Y0) | 1.2 |
| Maximum diameter of shaft abutment (da) | 63 mm |
| Minimum diameter of housing abutment (Da) | 87 mm |
| Maximum diameter of housing abutment (Da) | 101 mm |
| Minimum width of space required in housing on large side face (C | 4 mm |
| Maximum Radius of shaft fillet (ra) | 0.6 mm |
| Maximum Radius of housing fillet (rb) | 2 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 31310/DF ? Tapered roller bearings& single row& matched face-to-face Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
