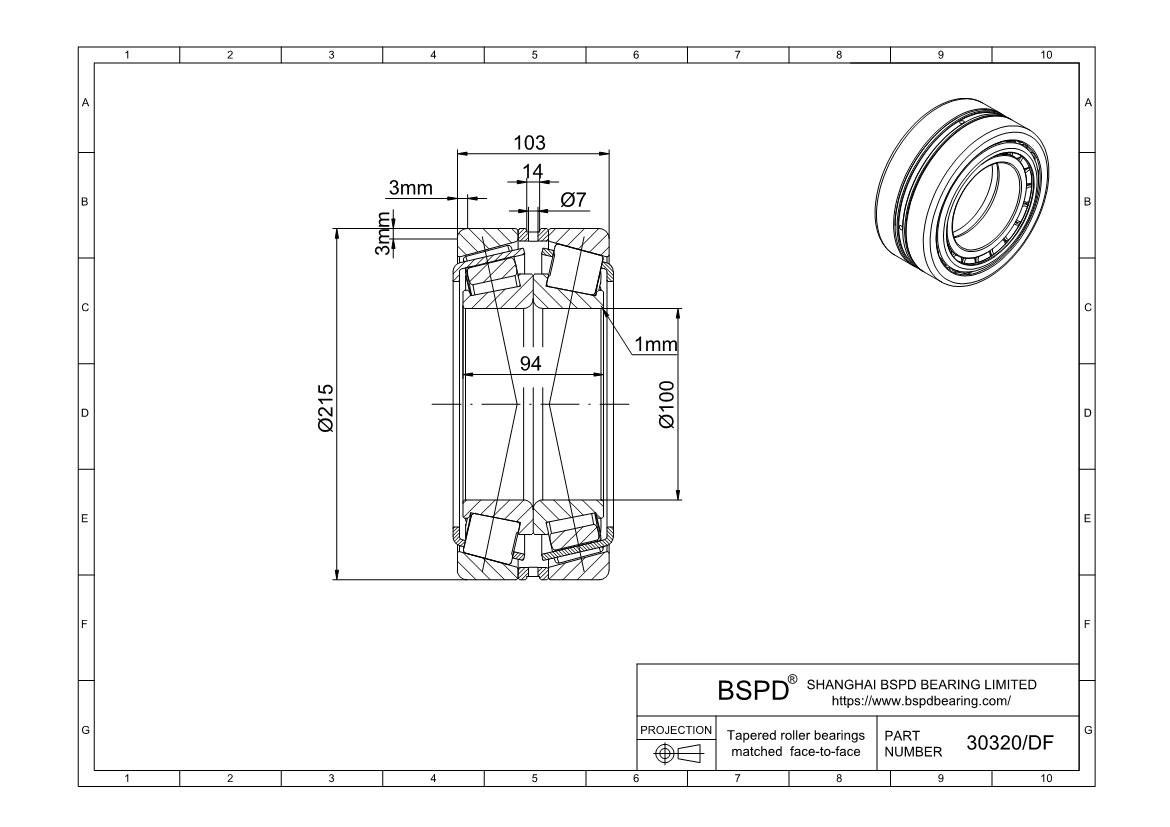

30320/DF
Tapered roller bearings& single row& matched face-to-face
Dimensions: Bore (Inner) Diameter: 100 mm； Outer Diameter: 215 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 30320/DF |
| Bore diameter | 100 mm |
| Outside diameter | 215 mm |
| Shoulder diameter of inner ring | 103 mm |
| Widthof inner ring | 94 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 1 mm |
| Basic dynamic load rating (Cr) | 739 kn |
| Basic static load rating (Cor) | 980 kN |
| Fatigue load limit (Pu) | 106 kN |
| Reference speed | 1900 r/min |
| Limiting speed | 3200 r/min |
| Mass | 17 kg |
| Limiting value (e) | 0.35 |
| Axial load factor (Y) | 1.9 |
| Axial load factor (Y0) | 2.9 |
| Maximum diameter of shaft abutment (da) | 128 mm |
| Minimum diameter of housing abutment (Da) | 184 mm |
| Maximum diameter of housing abutment (Da) | 202 mm |
| Minimum width of space required in housing on large side face (C | 6 mm |
| Maximum Radius of shaft fillet (ra) | 1 mm |
| Maximum Radius of housing fillet (rb) | 3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 30320/DF ? Tapered roller bearings& single row& matched face-to-face Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
