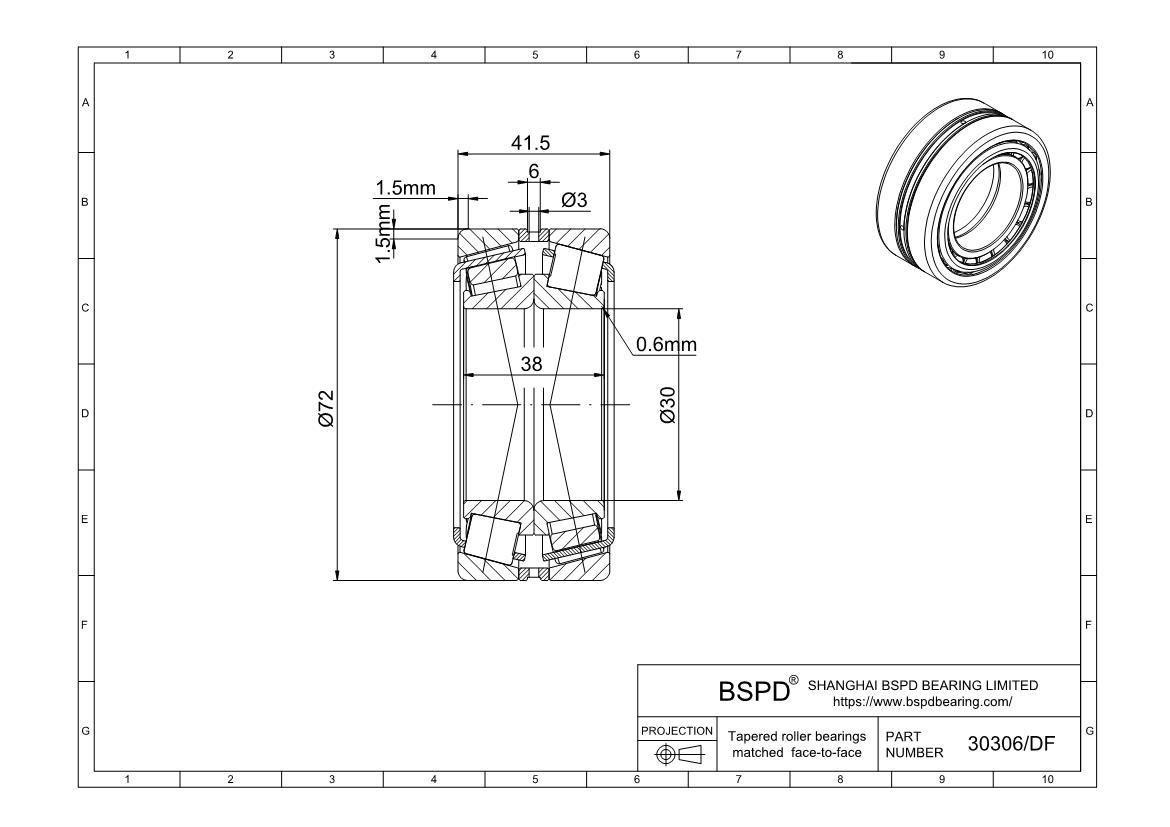

30306/DF
Tapered roller bearings& single row& matched face-to-face
Dimensions: Bore (Inner) Diameter: 30 mm； Outer Diameter: 72 mm； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 30306/DF |
| Bore diameter | 30 mm |
| Outside diameter | 72 mm |
| Shoulder diameter of inner ring | 41.5 mm |
| Widthof inner ring | 38 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 0.6 mm |
| Basic dynamic load rating (Cr) | 119 kn |
| Basic static load rating (Cor) | 112 kN |
| Fatigue load limit (Pu) | 12.7 kN |
| Reference speed | 6700 r/min |
| Limiting speed | 10000 r/min |
| Mass | 0.81 kg |
| Limiting value (e) | 0.31 |
| Axial load factor (Y) | 2.2 |
| Axial load factor (Y0) | 3.3 |
| Maximum diameter of shaft abutment (da) | 41 mm |
| Minimum diameter of housing abutment (Da) | 62 mm |
| Maximum diameter of housing abutment (Da) | 64 mm |
| Minimum width of space required in housing on large side face (C | 3 mm |
| Maximum Radius of shaft fillet (ra) | 0.6 mm |
| Maximum Radius of housing fillet (rb) | 1.5 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 30306/DF ? Tapered roller bearings& single row& matched face-to-face Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
