30244
Metric Single Row Tapered Roller Bearings

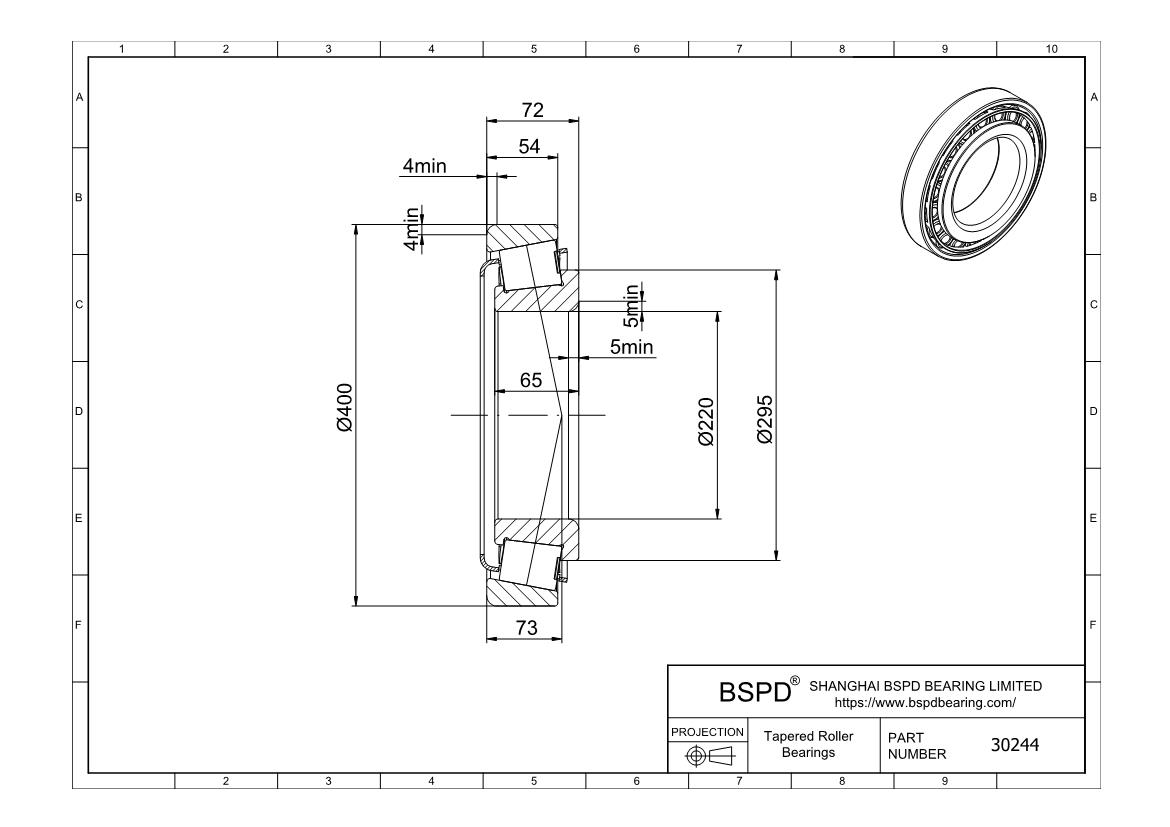

Dimensions: Bore (Inner) Diameter: 220 mm； Outer Diameter: 400 mm； Width (Thickness): 72 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 30244 |
| Bore diameter | 220 mm |
| Outside diameter | 400 mm |
| Total width | 72 mm |
| Shoulder diameter of inner ring | 295 mm |
| Widthof inner ring | 65 mm |
| Width of outer ring | 54 mm |
| Chamfer minimum dimension of inner ring (r1,2) | 5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 4 mm |
| Distance side face to pressure point (a) | 73 mm |
| Basic dynamic load rating (Cr) | 1059 kn |
| Basic static load rating (Cor) | 1400 kN |
| Fatigue load limit (Pu) | 127 kN |
| Reference speed | 1200 r/min |
| Limiting speed | 1600 r/min |
| Mass | 34.5 kg |
| Limiting value (e) | 0.43 |
| Axial load factor (Y) | 1.4 |
| Axial load factor (Y0) | 0.8 |
| Maximum diameter of shaft abutment (da) | 259 mm |
| Minimum diameter of shaft abutment (db) | 240 mm |
| Minimum diameter of housing abutment (Da) | 348 mm |
| Maximum diameter of housing abutment (Da) | 382 mm |
| Minimum diameter of housing abutment (Db) | 371 mm |
| Minimum width of space required in housing on large side face (C | 10 mm |
| Minimum width of space required in housing on small side face (C | 18 mm |
| Maximum Radius of shaft fillet (ra) | 5 mm |
| Maximum Radius of housing fillet (rb) | 4 mm |
