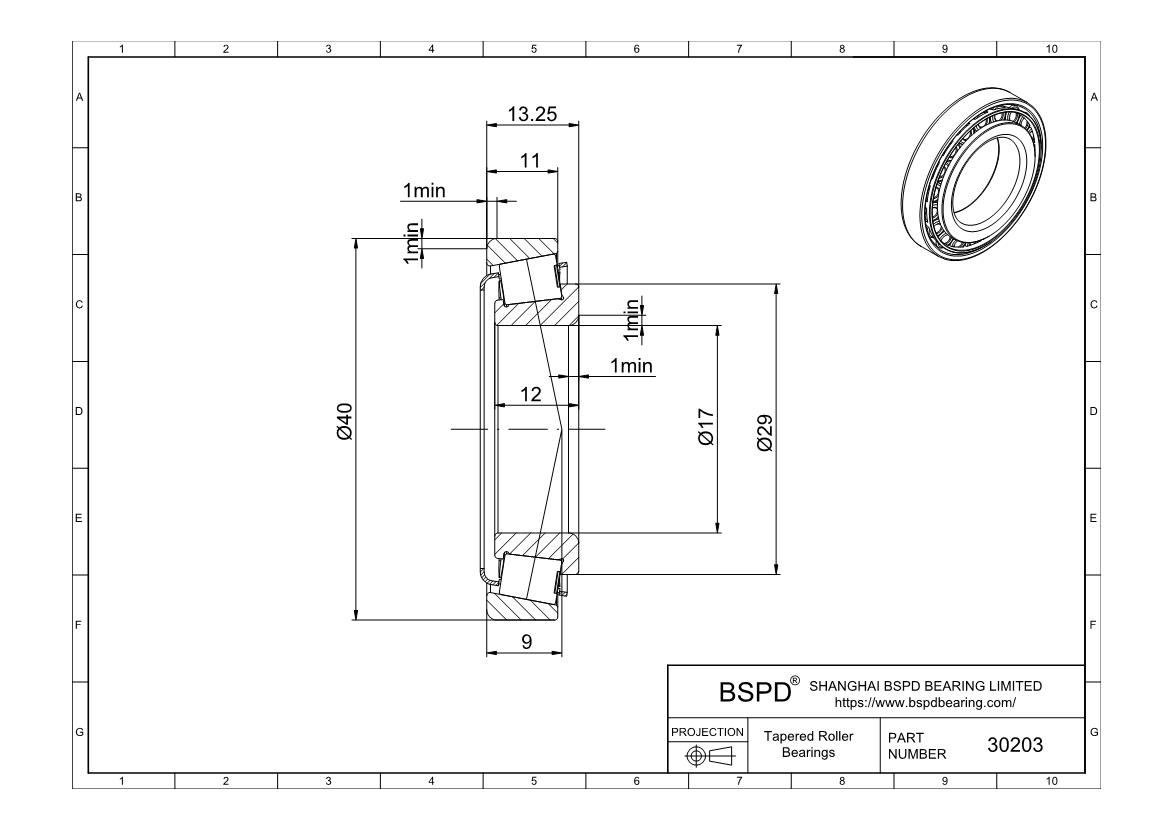

30203
Metric Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 17 mm； Outer Diameter: 40 mm； Width (Thickness): 13.25 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 30203 |
| Bore diameter | 17 mm |
| Outside diameter | 40 mm |
| Total width | 13.25 mm |
| Shoulder diameter of inner ring | 29 mm |
| Widthof inner ring | 12 mm |
| Width of outer ring | 11 mm |
| Chamfer minimum dimension of inner ring (r1,2) | 1 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 1 mm |
| Distance side face to pressure point (a) | 9 mm |
| Basic dynamic load rating (Cr) | 23.4 kn |
| Basic static load rating (Cor) | 18.6 kN |
| Fatigue load limit (Pu) | 1.83 kN |
| Reference speed | 15000 r/min |
| Limiting speed | 18000 r/min |
| Mass | 0.079 kg |
| Limiting value (e) | 0.35 |
| Axial load factor (Y) | 1.7 |
| Axial load factor (Y0) | 0.9 |
| Maximum diameter of shaft abutment (da) | 23 mm |
| Minimum diameter of shaft abutment (db) | 23.5 mm |
| Minimum diameter of housing abutment (Da) | 34 mm |
| Maximum diameter of housing abutment (Da) | 34.5 mm |
| Minimum diameter of housing abutment (Db) | 37 mm |
| Minimum width of space required in housing on large side face (C | 2 mm |
| Minimum width of space required in housing on small side face (C | 2 mm |
| Maximum Radius of shaft fillet (ra) | 1 mm |
| Maximum Radius of housing fillet (rb) | 1 mm |
