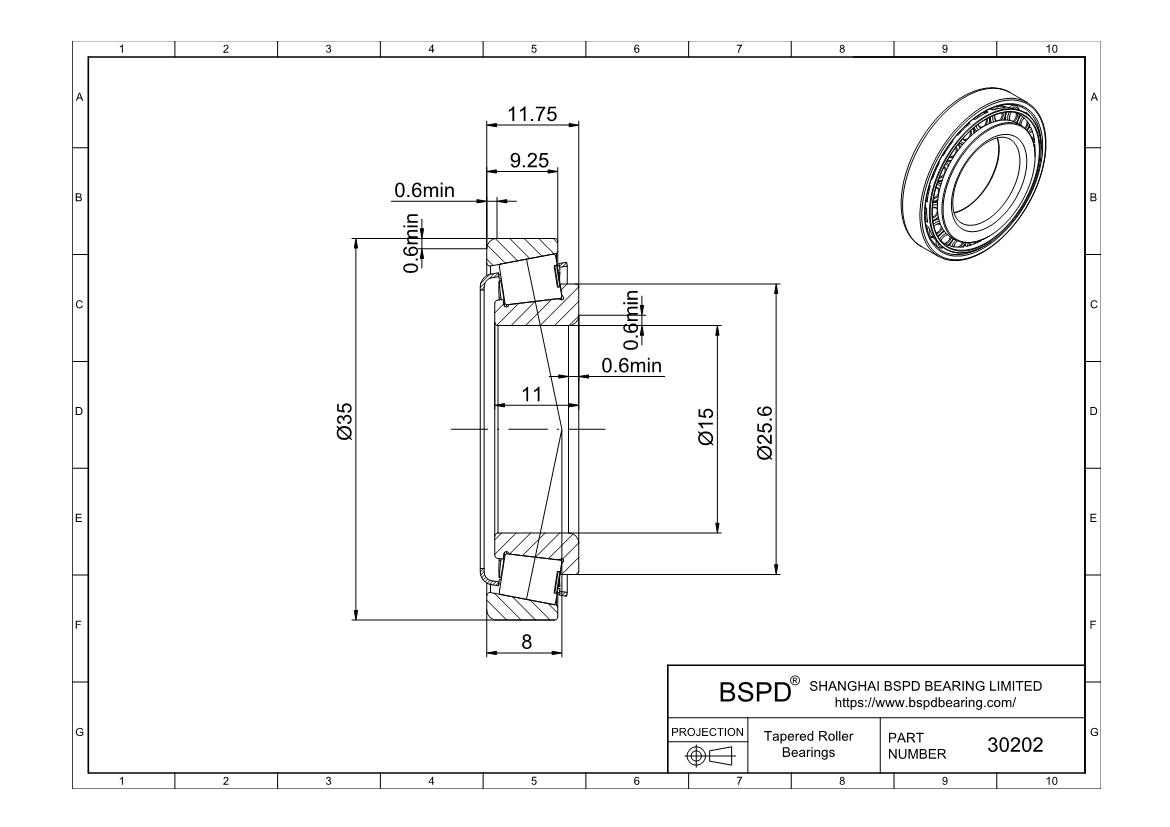

30202
Metric Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 15 mm； Outer Diameter: 35 mm； Width (Thickness): 11.75 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 30202 |
| Bore diameter | 15 mm |
| Outside diameter | 35 mm |
| Total width | 11.75 mm |
| Widthof inner ring | 11 mm |
| Width of outer ring | 9.25 mm |
| Chamfer minimum dimension of inner ring (r1,2) | 0.6 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 0.6 mm |
| Distance side face to pressure point (a) | 8 mm |
| Basic dynamic load rating (Cr) | 18.5 kn |
| Basic static load rating (Cor) | 14.6 kN |
| Fatigue load limit (Pu) | 1.43 kN |
| Reference speed | 17000 r/min |
| Limiting speed | 20000 r/min |
| Mass | 0.055 kg |
| Limiting value (e) | 0.35 |
| Axial load factor (Y) | 1.7 |
| Axial load factor (Y0) | 0.9 |
| Maximum diameter of shaft abutment (da) | 20 mm |
| Minimum diameter of shaft abutment (db) | 20.5 mm |
| Minimum diameter of housing abutment (Da) | 30 mm |
| Maximum diameter of housing abutment (Da) | 30.5 mm |
| Minimum diameter of housing abutment (Db) | 32 mm |
| Minimum width of space required in housing on large side face (C | 2 mm |
| Minimum width of space required in housing on small side face (C | 2.5 mm |
| Maximum Radius of shaft fillet (ra) | 0.6 mm |
| Maximum Radius of housing fillet (rb) | 0.6 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings 30202 ? Metric Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
