282.30.1400.013 Type 110/1600.2 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1310 mm； Outer Diameter: 1600 mm； Width (Thickness): 90 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	282.30.1400.013 Type 110/1600.2
Series	Series 23 25 28
Gear	Internal gear
Type	Ball
System of Measurement	Metric
Inside Diameter Of Inner Ring	1310 mm
Outside Diameter Of Outer Ring	1600 mm
Internal Diameter On Outer Ring	1453.5 mm
Height Of Overall Bearing Assembly	90 mm
External Diameter On Inner Ring	1456.5 mm
Ring Material	42CRO or 50MN
Ball Materrial	52100_Chrome_Steel
Cage Material	Nylon or 300 Series Stainless Steel
Seal Material	NBR
Weight Of Bearing Assembly	243 Kg
Bolt Circle In Inner Ring	1394 mm
Bolt Circle In Outer Ring	1560 mm
Diametral Pitch	1330 mm
Number Of Gear Teeth	133
Permissible Tooth Forces T	38.55
Max Gear Tooth Load Fz	77.10
Diameter Of Bearing Raceway	1455 mm

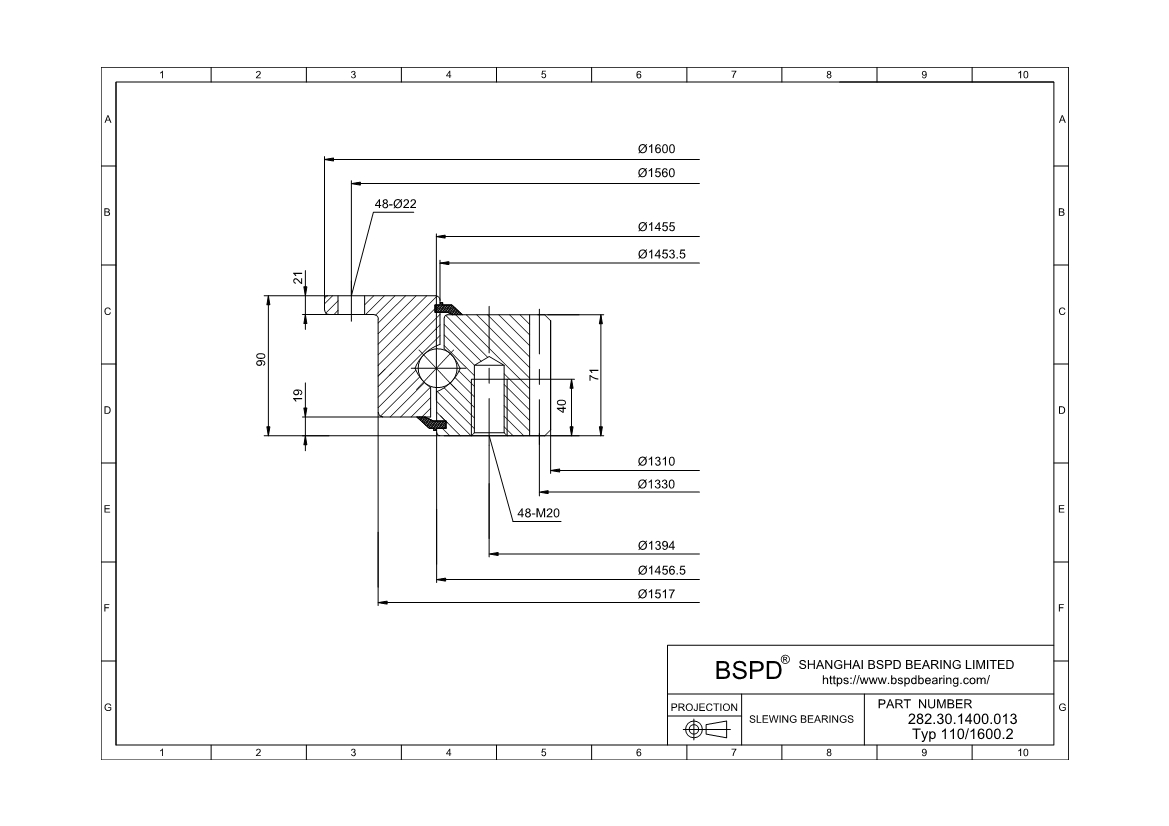

Correspond	FIG2
K	19 mm
n1	6
Bolt Size (M)	20 mm
T	40
M	10
F	71 mm
RoHS	Compliant

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
