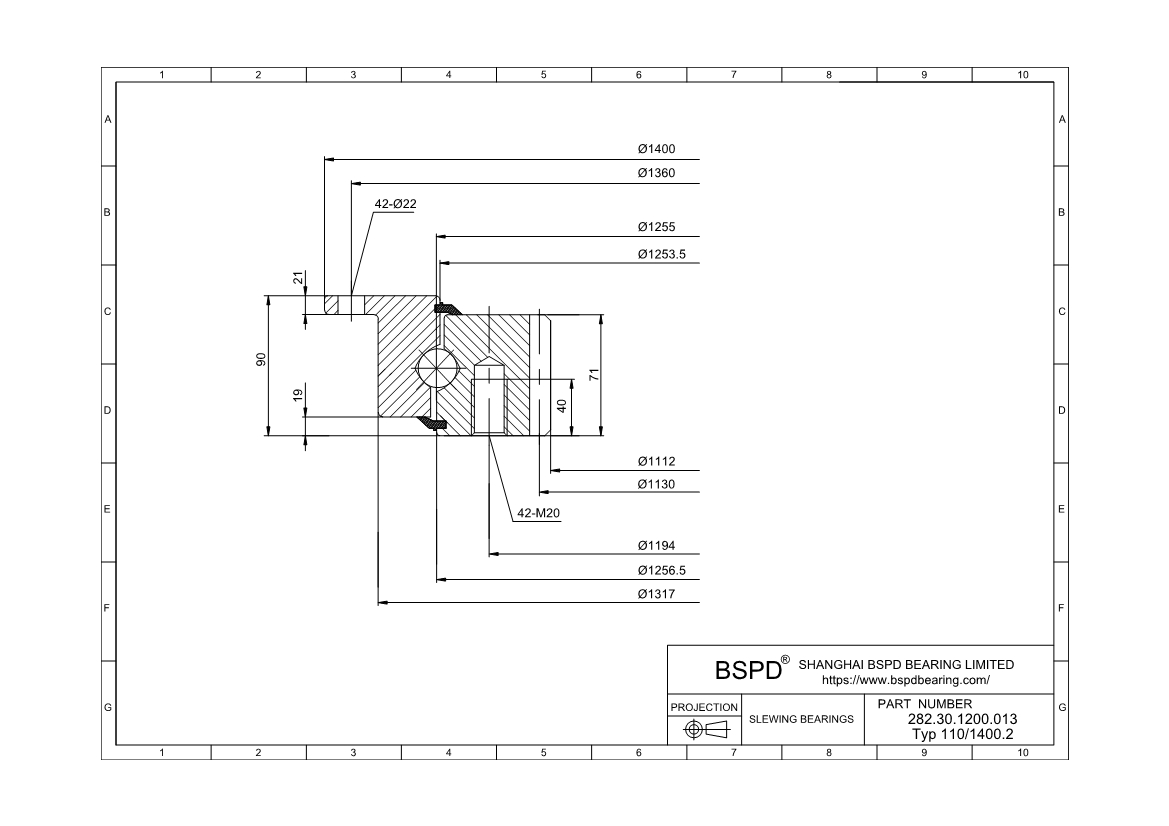

282.30.1200.013 Type 110/1400.2
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1112 mm； Outer Diameter: 1400 mm； Width (Thickness): 90 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 282.30.1200.013 Type 110/1400.2 |
| Series | Series 23 25 28 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1112 mm |
| Outside Diameter Of Outer Ring | 1400 mm |
| Internal Diameter On Outer Ring | 1253.5 mm |
| Height Of Overall Bearing Assembly | 90 mm |
| External Diameter On Inner Ring | 1256.5 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 208 Kg |
| Bolt Circle In Inner Ring | 1194 mm |
| Bolt Circle In Outer Ring | 1360 mm |
| Diametral Pitch | 1130 mm |
| Number Of Gear Teeth | 113 |
| Permissible Tooth Forces T | 39.18 |
| Max Gear Tooth Load Fz | 78.36 |
| Diameter Of Bearing Raceway | 1255 mm |
| Correspond | FIG2 |
| k·m | -1.0 |
| K | 19 mm |
| n1 | 6 |
| Bolt Size (M) | 20 mm |
| T | 40 |
| M | 10 |
| F | 71 mm |
| RoHS | Compliant |
