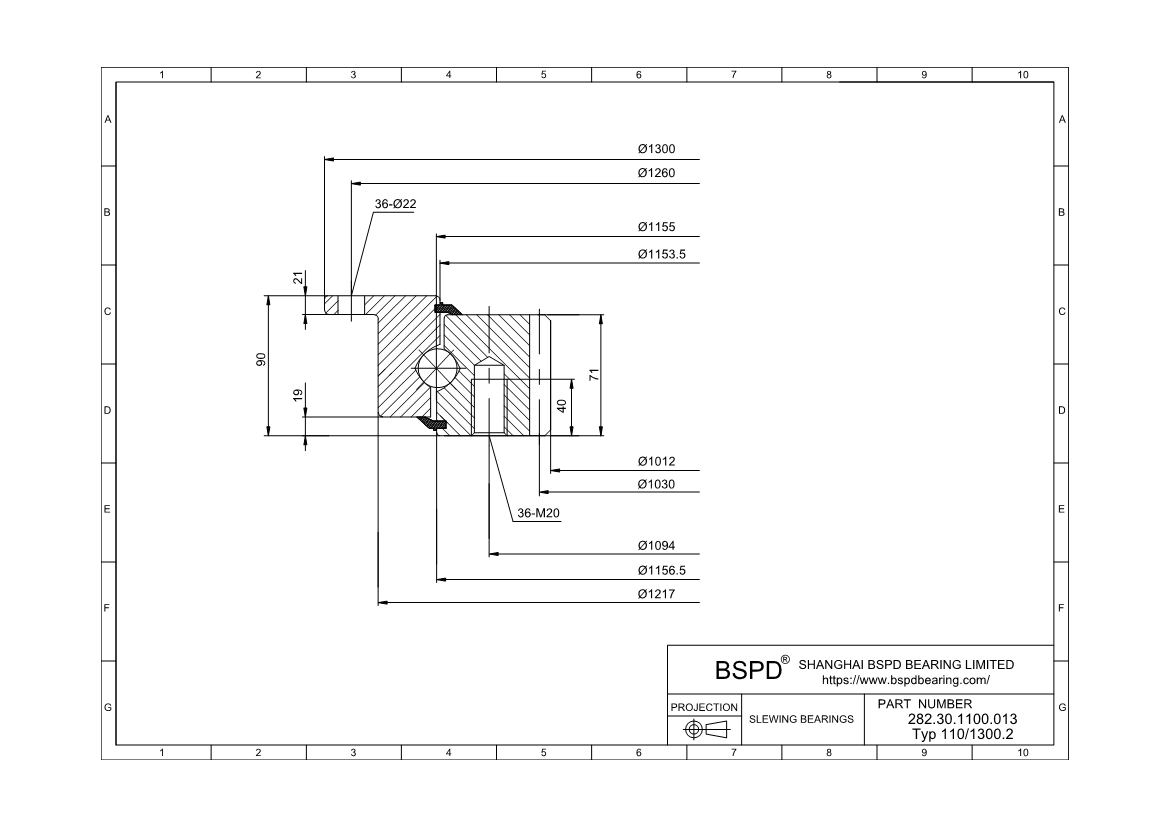

282.30.1100.013 Type 110/1300.2 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1012 mm； Outer Diameter: 1300 mm； Width (Thickness): 90 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	282.30.1100.013 Type 110/1300.2
Series	Series 23 25 28
Gear	Internal gear
Type	Ball
System of Measurement	Metric
Inside Diameter Of Inner Ring	1012 mm
Outside Diameter Of Outer Ring	1300 mm
Internal Diameter On Outer Ring	1153.5 mm
Height Of Overall Bearing Assembly	90 mm
External Diameter On Inner Ring	1156.5 mm
Ring Material	42CRO or 50MN
Ball Materrial	52100_Chrome_Steel
Cage Material	Nylon or 300 Series Stainless Steel
Seal Material	NBR
Weight Of Bearing Assembly	192 Kg
Bolt Circle In Inner Ring	1094 mm
Bolt Circle In Outer Ring	1260 mm
Diametral Pitch	1030 mm
Number Of Gear Teeth	103
Permissible Tooth Forces T	39.58
Max Gear Tooth Load Fz	79.16
Diameter Of Bearing Raceway	1155 mm
Correspond	FIG2
k·m	-1.0
K	19 mm
n1	6
Bolt Size (M)	20 mm
T	40
M	10
F	71 mm
RoHS	Compliant
