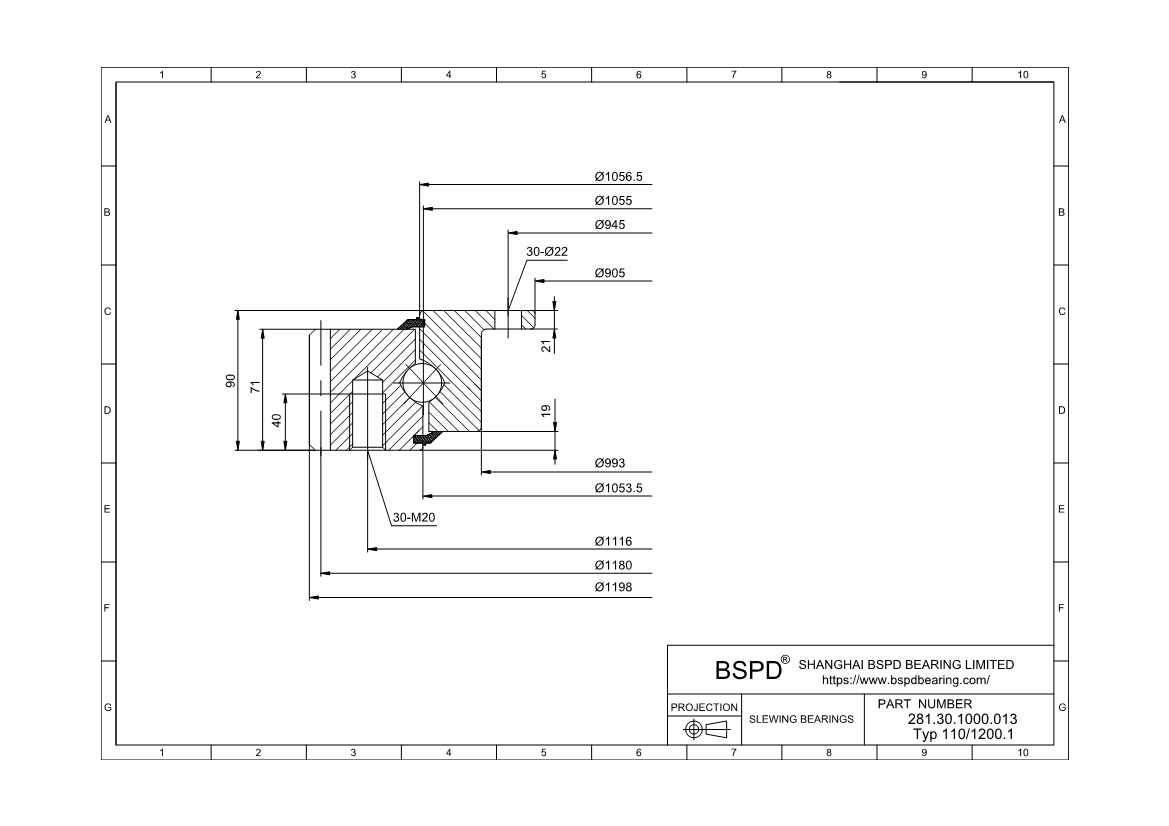

281.30.1000.013 Type 110/1200.1
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 905 mm； Outer Diameter: 1198 mm； Width (Thickness): 90 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 281.30.1000.013 Type 110/1200.1 |
| Series | Series 23 25 28 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 905 mm |
| Outside Diameter Of Outer Ring | 1198 mm |
| Internal Diameter On Inner Ring | 993 mm |
| Internal Diameter On Outer Ring | 1053.5 mm |
| Height Of Overall Bearing Assembly | 90 mm |
| External Diameter On Inner Ring | 1056.5 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 183 Kg |
| Bolt Circle In Inner Ring | 945 mm |
| Bolt Circle In Outer Ring | 1116 mm |
| Size Of Hole In Inner Ring | 22 mm |
| Size Of Hole In Outer Ring | 22 mm |
| Diametral Pitch | 1180 mm |
| Number Of Gear Teeth | 118 |
| Permissible Tooth Forces T | 36.40 |
| Max Gear Tooth Load Fz | 72.80 |
| Diameter Of Bearing Raceway | 1055 mm |
| Distance Between Bottom Outer Ring Inner Ring | 19 mm |
| Correspond | FIG4 |
| k·m | -1.0 |
| n1 | 6 |
| M | 10 |
| F | 71 mm |
| RoHS | Compliant |
