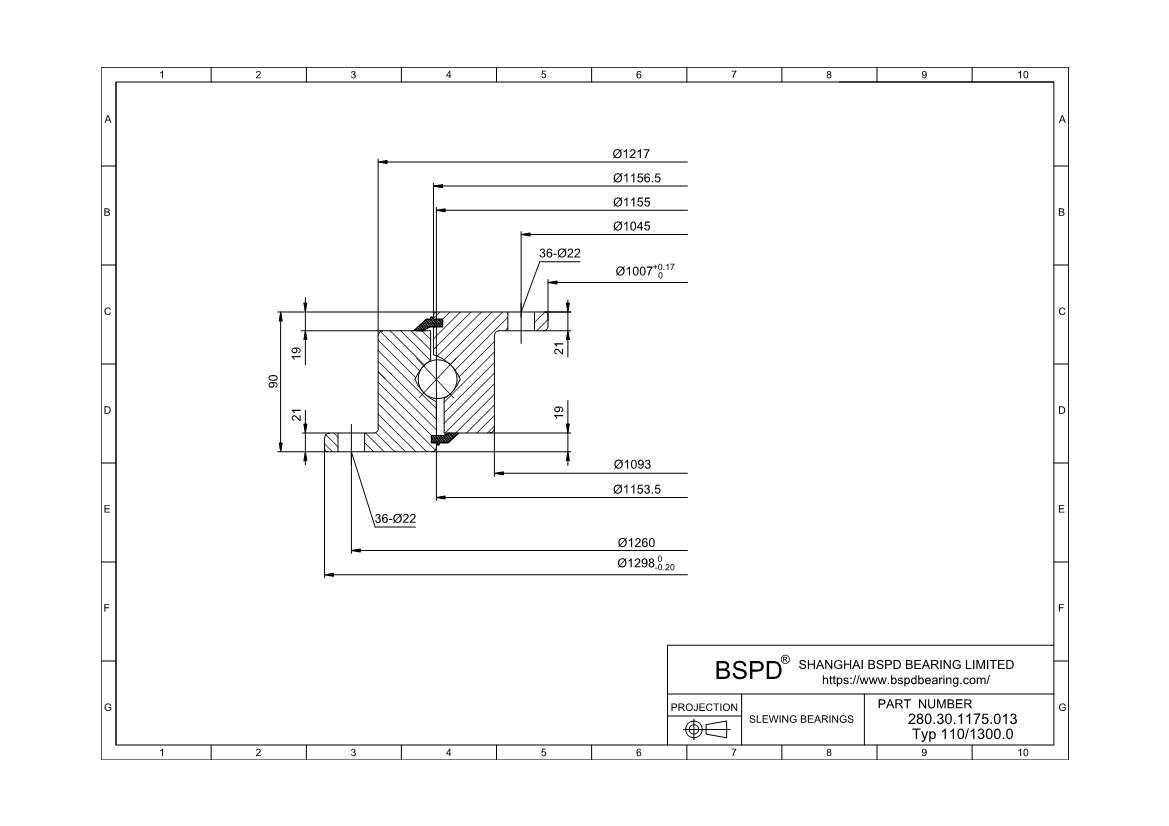

280.30.1175.013 Type 110/1300.0
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1007 mm； Outer Diameter: 1298 mm； Width (Thickness): 90 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 280.30.1175.013 Type 110/1300.0 |
| Series | Series 23 25 28 |
| Gear | Without gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1007 mm |
| Outside Diameter Of Outer Ring | 1298 mm |
| Internal Diameter On Inner Ring | 1093 mm |
| Internal Diameter On Outer Ring | 1153.5 mm |
| Height Of Overall Bearing Assembly | 90 mm |
| External Diameter On Inner Ring | 1156.5 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 159 Kg |
| Bolt Circle In Inner Ring | 1045 mm |
| Bolt Circle In Outer Ring | 1260 mm |
| Size Of Hole In Inner Ring | 22 mm |
| Size Of Hole In Outer Ring | 22 mm |
| Diameter Of Bearing Raceway | 1155 mm |
| Distance Between Bottom Outer Ring Inner Ring | 19 mm |
| Correspond | FIG5 |
| K | 19 mm |
| n1 | 6 |
| RoHS | Compliant |
